20-160mm PPR Equal Tee Indoor PPR Pipe Fittings With Long Time Service
Detail Information
| Product Name: | PPR TEE | Connection: | Socket |
|---|---|---|---|
| Shape: | Reduced | Color: | Green, White, Grey Etc |
| Brand: | CR | Production Temperature: | -40 – +95°C |
1. Pressure Rating: 2.5MPa2. Production temperature: -40 – +95 Degrees Celsius
3. Color:As required,normal is green,white
4. Life time:50 years undernormal natural condition
5.Welding way:socket welding
Specificaion

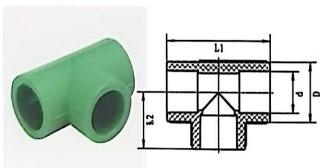

| Description | d | D | L1 | L2 |
| dn20 | 20 | 28 | 54 | 27 |
| dn25 | 25 | 34 | 64 | 32 |
| dn32 | 32 | 43 | 74 | 37 |
| dn40 | 40 | 53 | 86 | 43 |
| dn50 | 50 | 67 | 102 | 51 |
| dn63 | 63 | 84 | 123 | 61.5 |
| dn75 | 75 | 100 | 141 | 70.5 |
| dn90 | 90 | 122 | 164 | 82 |
| dn110 | 110 | 148 | 196 | 98 |
| dn125 | 125 | 159 | 233 | 116.5 |
| dn160 | 160 | 204 | 290 | 145 |
Advantage
1. High temperature resistance: The maximum sustained working temperature is up to 70℃, the maximum transient temperature is up to 95 ℃.
2. Heat preservation: Low thermal conductivity result in preserving heat
3.Non-toxic: No heavy metal additives, would not be covered with dirt or contaminated by bacterium.
4. Lower installation costs: Light weight and ease of installation can reduce installation costs.
5. Higher flow capacity: Smooth interior walls result in low pressure loss and high volume.
Application
Due to its special characteristics and outstanding advantages, PP-R piping system is a piping system with many applications.

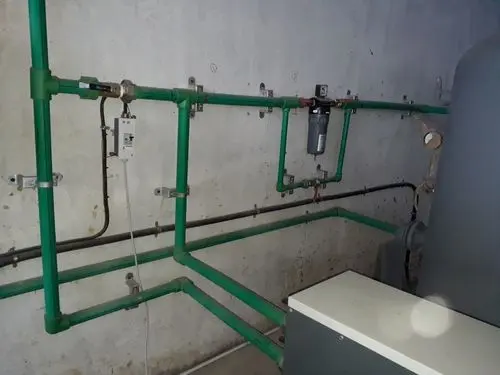

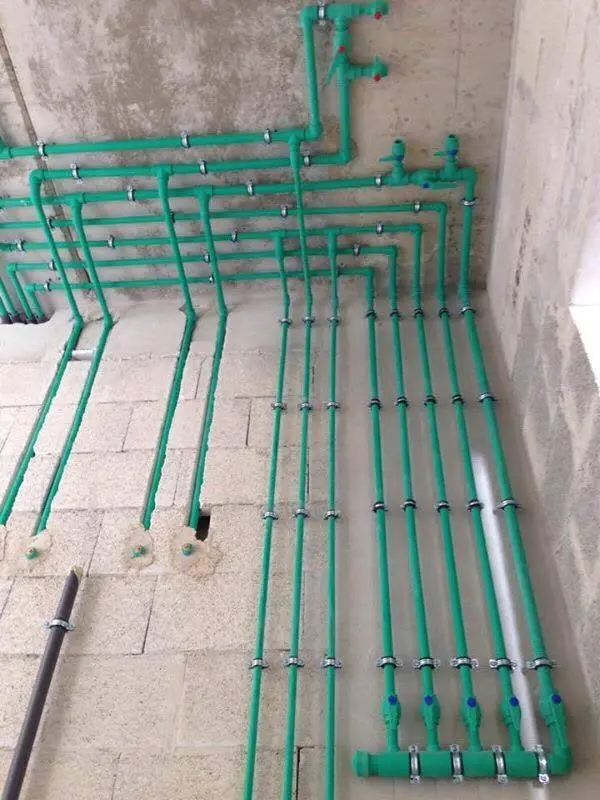

1. Portable water pipe network for cold and hot water supply in civil buildings, such as residence, hospitals, hotels, offices, schools and buildings on ship,etc.
2. Industrial pipe networks for foodstuff, chemical and electric industry. e.g.for the transportation of some corrosive fluids (acid or alkaline water and ionized water, etc.)
3. Pipe networks for purified water and mineral water.
4. Pipe networks for air conditioning equipment.
5. Pipe networks for floor heating system.
6. Pipe networks for rainwater utilization system.
7. Pipe networks for swimming pool facilities
8. Pipe networks for agriculture and horticulture.
9. Pipe networks for solar energy facilities.
10. Pipe networks for chilled water.
Nonpoisonous and harmless:
PP-R belongs to polyolefin, which is a kind of thermo-plastics, whose molecule is only composed of carbon and hydrogen. And the sanitary property of the materials for VASEN PP-R pipes and fittings has been certificated by national authority organization.
Good thermal and sound insulation property:
The thermal conductivity coeffcient of PP-R is 0.23w/m,which is only 1/200 of steel pipe (43-52w/m). No need to use insulating materials when used in hot water systems,which saves insulation materials and energy. And it has lower noise when water delivery in pipeline system.
Better water passing capacity:
The smooth inner surface of PP-R pipes and fittings have lower friction, which ensure fast running of the water.
Environment-friendly building material:
During production, installation and application, no pollution will be caused to the environment.Meanwhile,the materials are recyclable, which can minimize resource wasting.
