Black Color ISO ASTM Standard PE100/PE80 Injection Butt Fusion Welding Joint Reducer Fittings

Short Description:

1. Name: HDPE Reducer Fittting

2. Size: dn25-dn1200mm

3. Pressure :PE100 SDR11 Water PN16 or Gas 10 Bar

4. Pressure : PE SDR17 Water PN10 or Gas 6 Bar

5. Standard:  ISO4427, EN12201, ISO4437/ EN1555

6. Packing: Woodencase cartons or bags.

7. Inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.


Product Detail

Specification

Workshop &Certification

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

 PE100/PE80  Injection  Butt Fusion Welding Joint Reducer Fittings

 Type  Specification Diameter(mm) Pressure
HDPE Butt Fusion Fittings Reducer DN50-1200mm  SDR17,SDR11, SDR9(90-400mm)
 Equal Tee DN50-1200mm  SDR17,SDR11, SDR9(90-400mm)
Reducing Tee DN50-1200mm  SDR17,SDR11, SDR9(90-400mm)
Lateral Tee(45 deg Y Tee) DN63-315mm  SDR17,SDR11, SDR9(90-400mm)
22.5 Deg Elbow DN110-1200mm  SDR17,SDR11, SDR9(90-400mm)
  30 Deg Elbow DN450-1200mm  SDR17,SDR11, SDR9(90-400mm)
45 Deg Elbow DN50-1200mm  SDR17,SDR11, SDR9(90-400mm)
90 Deg Elbow DN50-1200mm  SDR17,SDR11, SDR9(90-400mm)
Cross Tee DN63-1200mm  SDR17,SDR11, SDR9(90-400mm)
Reducing Cross Tee DN90-1200mm  SDR17,SDR11, SDR9(90-400mm)
End Cap DN20-1200mm  SDR17,SDR11, SDR9(90-400mm)
Stub End DN20-1200mm  SDR17,SDR11, SDR9(90-400mm)
Male(Female) Union DN20-110mm 1/2'-4'  SDR17,SDR11



Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com

Product Description

黑色10 (3)
DSC00927
黑色10 (2)

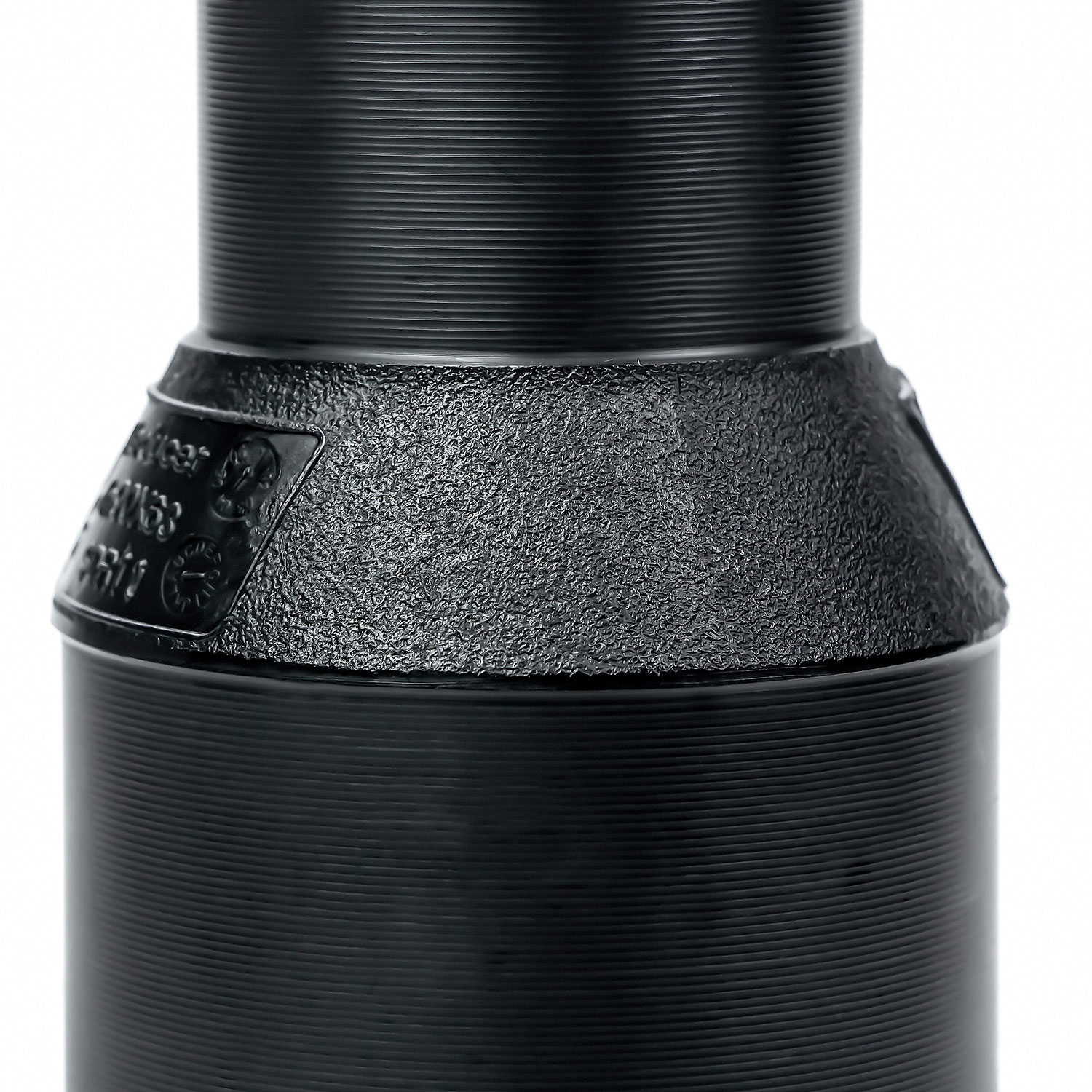

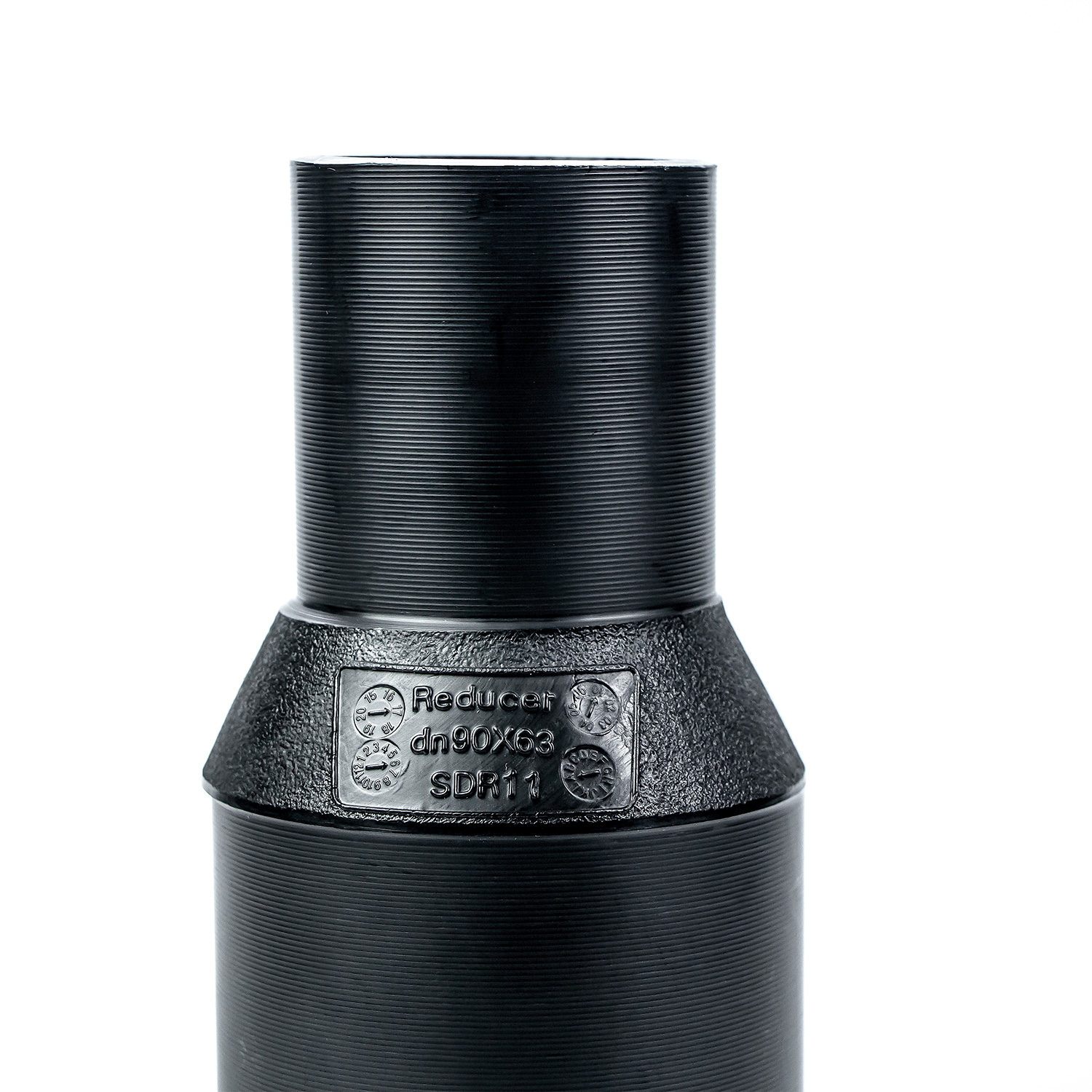

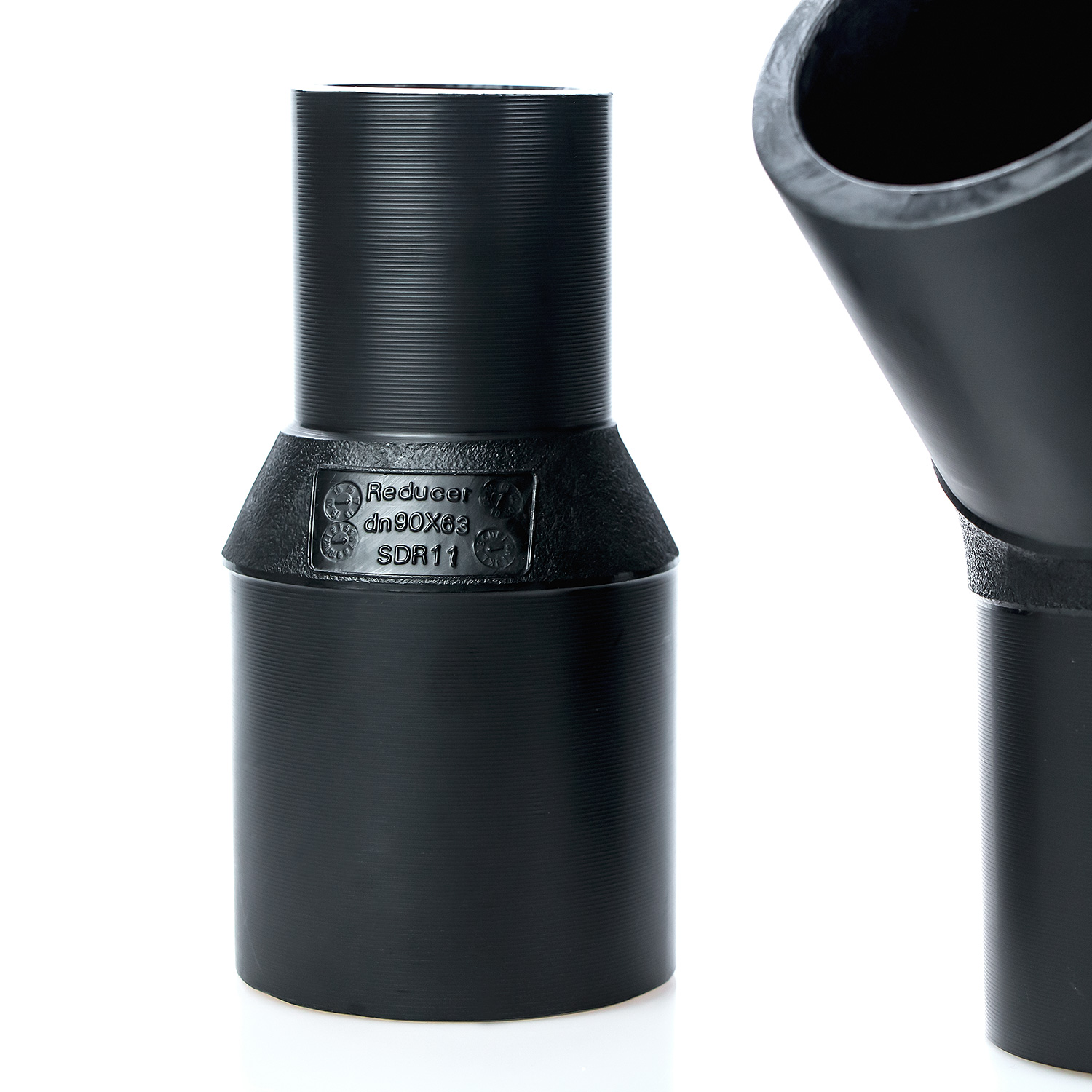

Reducer



Products name
Buttfusion Reducer
Sizes Available
63-1200mm
SDR
SDR11 SDR17
PN
PN16 PN10
Material Brand
3490/3488
Executive Standard
EN 12201-3:2011,EN 1555-3:2010,ISO4427,ISO4437
Colors Available
Black color , blue color, Orange or as request.
Packing Method
Normal export packing. by carton
Certificate
ISO, CE, BV,WRAS
Supply Ability
100000 Ton/Year
Payment Method
T/T, L/C at sight
Trading Method
EXW, FOB, CFR, CIF

(1) Black PE pipe fittings are UV resistant, resistant to aging and have a service life of up to 50 years.

(2) Smooth inner wall, low frictional resistance, energy saving, good hygienic performance, no additives.

(3) Polyethylene pipe fittings can be welded to the pipe joints to form an organic whole, without the possibility of joint leakage, saving water, reducing operating costs and maintenance costs.

(4) The installation of PE pipes can be welded or fused to form a completely enclosed anti-seepage system.

(5) Good low temperature resistance, corrosion resistance, long life, buried pipelines in the temperature range of -40 ° C and 40 ° C

CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855


  • Previous:
  • Next:

  • PE100/PE80  Injection  Butt Fusion Welding Joint Reducer Fittings
    Reducer

    Specifications

    Φdn1×Φdn2

    L

    mm

    A

    mm

    B

    mm

    63×25

    139

    63

    55

    63×32

    147

    63

    55

    63×40

    141

    63

    55

    63×50

    150

    63

    55

    75×32

    149

    70

    55

    75×40

    150

    76

    55

    75×50

    143

    70

    55

    75×63

    150

    70

    63

    90×32

    163

    79

    55

    90×40

    162

    79

    55

    90×50

    161

    79

    55

    90×63

    168

    79

    63

    90×75

    169

    79

    70

    110×40

    169

    82

    55

     110×50

    166

    82

    55

    110×63

    173

    82

    63

    110×75

    181

    82

    70

    110×90

    177

    82

    79

    125×63

    189

    87

    63

    125×75

    195

    105

    75

    125×90

    183

    87

    79

    125×110

    185

    87

    82

    140×90

    224

    92

    79

    140×110

    220

    92

    82

    160×32

    202

    98

    70

    160×63

    195

    98

    63

    160×75

    204

    98

    70

    160×90

    212

    98

    79

    160×110

    211

    98

    82

    160×125

    216

    98

    87

    180×90

    231

    110

    79

    180×110

    219

    110

    82

    180×125

    233

    105

    87

    180×160

    229

    105

    87

    200×63

    210

    112

    63

    200×90

    220

    108

    79

    200×110

    228

    112

    82

    200×125

    220

    112

    90

    200×160

    226

    112

    85

    200×180

    245

    112

    105

    225×90

    226

    105

    79

    225×110

    245

    105

    82

    225×160

    249

    105

    90

    225×180

    249

    105

    90

    225×200

    246

    105

    90

    250×90

    224

    117

    79

    250×110

    221

    108

    82

    250×125

    234

    109

    87

    250×160

    244

    110

    98

    250×180

    237

    110

    105

    250×200

    250

    110

    103

    250×225

    231

    105

    90

    280×160

    257

    107

    85

    280×225

    247

    110

    85

    280×250

    247

    110

    90

    315×90

    240

    115

    79

    315×110

    241

    115

    82

    315×160

    254

    115

    98

    315×180

    253

    115

    100

    315×200

    253

    115

    92

    315×225

    245

    115

    90

    315×250

    246

    115

    90

    355×200

    270

    100

    100

    355×250

    270

    100

    100

    355×280

    260

    100

    100

    355×315

    240

    100

    100

    400×200

    260

    100

    100

    400×250

    250

    100

    100

    400×315

    250

    100

    100

    400×355

    250

    100

    100

    450×200

    260

    100

    100

    450×250

    260

    100

    100

    450×315

    250

    100

    100

    450×355

    250

    100

    100

    450×400

    240

    100

    100

    500×400

    250

    100

    100

    500×450

    250

    100

    100

    560×500

    260

    100

    100

    630×500

    260

    100

    100

    710×630

    250

    100

    100

    800×710

    260

    110

    100



    Welcome to contact us for products details and professional service.

    Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855

    CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.



    IMG_1088
    IMG_55851



    CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555,  DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.

    WRAS-PIPE2
    CE-PE-PIPE-FITTING

    Welcome to contact us for products details and professional service.

    Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855
