China Cheap price China 1600W Hand Plastic Extrusion Welding Gun with German Drill PP PE Plastic Extruder Machine

Short Description:

1. Hot Air Power: 3400W
2. Welding Rod Heating Power: 800W
3. Extruding Power: 1300W
4. Air Temp: 20-600 °c Adjustable
5. Extruding Temp: 200-300 °c Adjustable
6. Welding Speed: 2.0-2.5Kg/h
7. Welding Rod DIA: 3.0mm-4.0mm
8. Material: PP HDPE LDPE


Product Detail

Product Tags

With our excellent administration, potent technical capability and strict top quality control technique, we go on to provide our consumers with trusted quality, reasonable price ranges and fantastic providers. We intention at becoming one among your most trusted partners and earning your fulfillment for China Cheap price China 1600W Hand Plastic Extrusion Welding Gun with German Drill PP PE Plastic Extruder Machine, For more information, please contact us as soon as possible!
With our excellent administration, potent technical capability and strict top quality control technique, we go on to provide our consumers with trusted quality, reasonable price ranges and fantastic providers. We intention at becoming one among your most trusted partners and earning your fulfillment for China PE, HDPE, Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We can provided good quality with competitive price for you.

Detail Information

Color: Green Hot Air Power: 1600W
Net Weight: 6.0Kg Driving Motor: HITACHI
Air Temperature: 200-380℃ Welding Rod Heating Power: 800W

Product Description

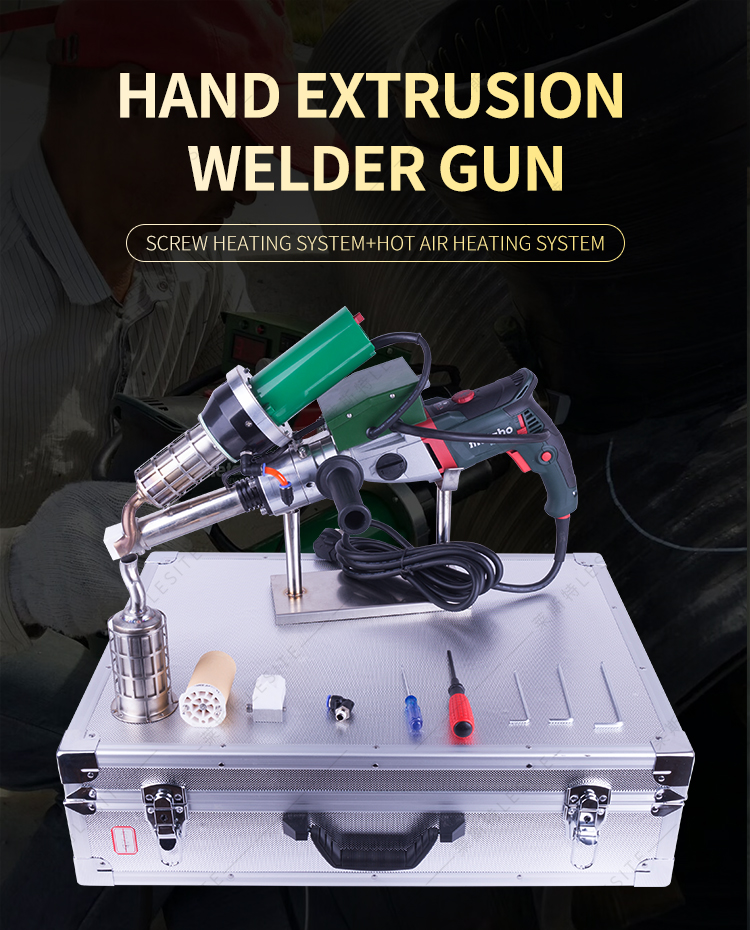

Plastic Extrusion Welding Gun Digital Display Controller Extrusion Welder Description

This plastic extrusion welder is the first welder system with dual independent heating function in China.

The digital display controller has a 360° rotating welding head. It can work deep into a small space, and the motor cold start protection mechanism is applicable. For welding PE, PP, PVDF and other hot melt materials.

This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.

Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure. Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.

H40b7345cca814ab78991016e7450c3101

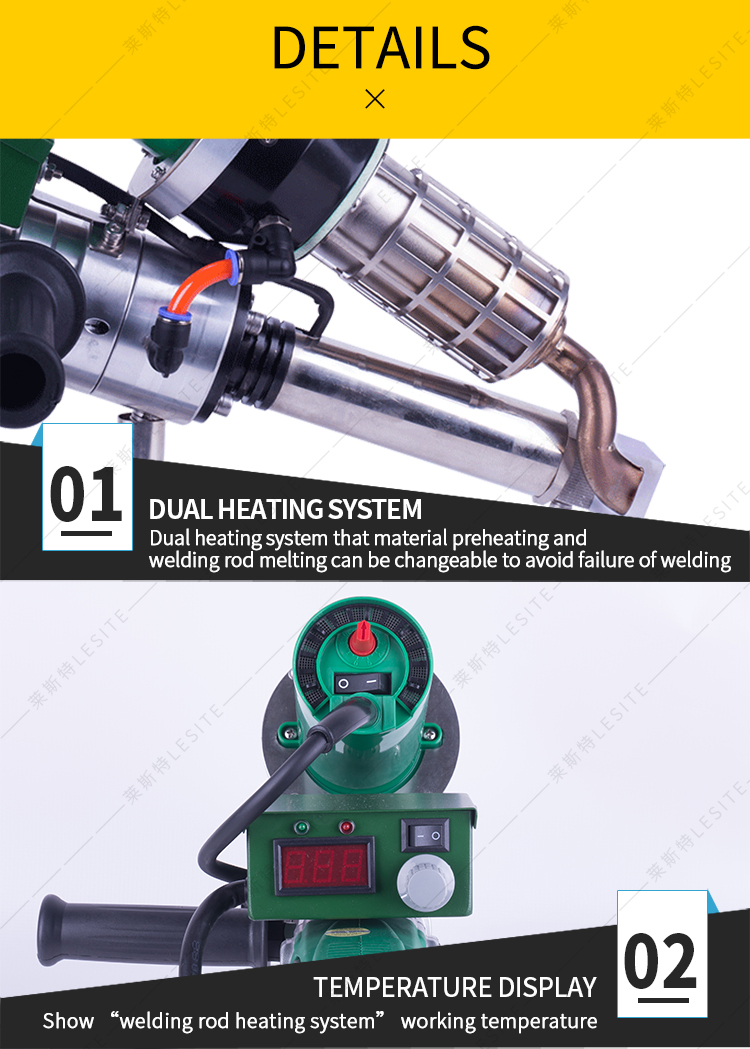

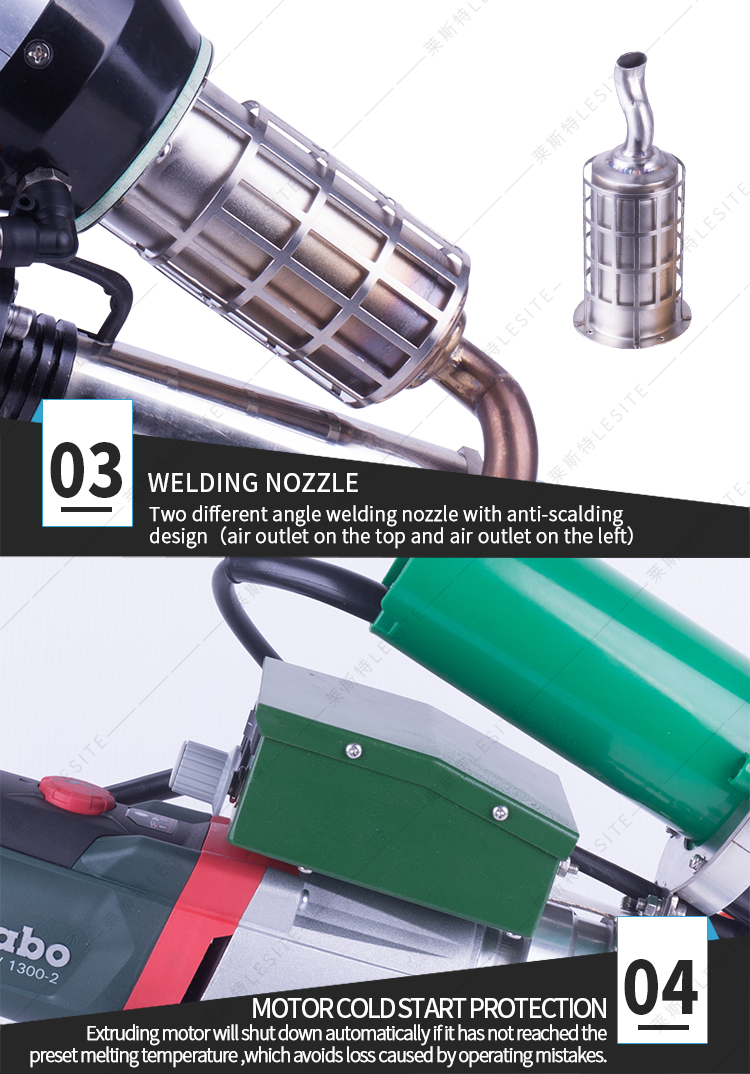

Product Features

Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.

Light weight, easy to handle and available to operation at different angles.

Big extrusion volume can be welded more than 10mm welding seam.

Different welding shoes can be applied to different types of welding.

It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding Association).

Data sheets

Model CRT600C
Frequency 220V
Extruding Motor Power 800W
Hot Air Power 1600W
Welding Rod Heating Power 800W
Air Temperature 20-620℃
Extruding Temperature 200-380℃
Extruding Volume 2.0Kg/h
Welding Rod Diameter 3.0mm-4.0mm-5.0mm Customized
Net Weight 6.0Kg
Driving Motor HITACHI

Data sheets

He4d03cee0abd459dbb920d6e40659451Y
HTB140_4N9zqK1RjSZPcq6zTepXad

Application

H5d17e09f2c7c4f4081fcf62d8efc58d2QWith our excellent administration, potent technical capability and strict top quality control technique, we go on to provide our consumers with trusted quality, reasonable price ranges and fantastic providers. We intention at becoming one among your most trusted partners and earning your fulfillment for China Cheap price China 1600W Hand Plastic Extrusion Welding Gun with German Drill PP PE Plastic Extruder Machine, For more information, please contact us as soon as possible!
China Cheap price China PE, HDPE, Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We can provided good quality with competitive price for you.
