China Supplier PE Pipe Fitting Pipe Fittings HDPE Pipe Tapping Saddle

Short Description:

1. Name: EF Multiseal Tapping Tee

2. Size: dn63-315mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar

4. ISO4437/ EN1555

Send email to us Send email

Product Detail

Product Tags

We constantly stick to the theory “Quality To start with, Prestige Supreme”. We have been fully committed to offering our consumers with competitively priced quality products and solutions, prompt delivery and qualified service for China Supplier PE Pipe Fitting Pipe Fittings HDPE Pipe Tapping Saddle, Our products enjoy good popularity among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
We constantly stick to the theory “Quality To start with, Prestige Supreme”. We have been fully committed to offering our consumers with competitively priced quality products and solutions, prompt delivery and qualified service for China PE Pipe Fittings and HDPE Tube, We integrate design, manufacture and export together with more than 100 skillful workers, strict quality controlling system and experienced technology.We keep long term business relationships with wholesaler and distributors form more than 50 countries, such as USA, UK, Canada, Europe and Africa etc.

Detail Information

Application:	Gas,Water,Oil Etc	Product Name:	Electrofusion HDPE Fittings Branch Saddle For Gas Supply PN16 SDR11 PE100
Specification:	6332mm~31590mm PE100 PN16 SDR11	Standard:	EN 12201-3:2011,EN 1555-3:2010
Port:	China Main Port	Material:	PE100 Virgin Raw Material

Product Description

lectrofusion HDPE Fittings Branch Saddle for Gas supply PN16 SDR11 PE100

Production Description of Electrofusion HDPE Branch Saddle

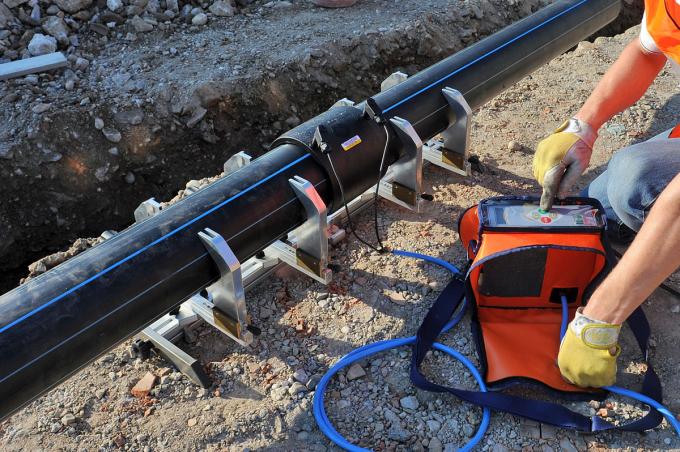

Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Products name	Electrofusion HDPE Tapping Branch Saddle
Sizes Available	As below specification sheet in detail
SDR	SDR11
PN	PN16
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 1555-3:2010
Colors Available	Black color or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity. Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification

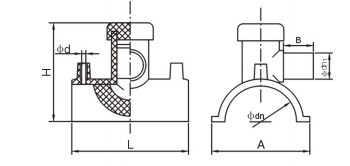

1245974178423783426

specifications φD×D1	L mm	A mm	B mm	H mm	d mm
63×32	110	100	45	80	4.7
90×63	145	155	80	145	4.7
110×32	145	160	80	145	4.7
110×63	145	160	80	145	4.7
160×63	190	230	100	185	4.7
163×90	190	230	100	185	4.7
200×63	190	235	110	185	4.7
200×90	190	235	115	195	4.7
250×63	190	300	125	195	4.7
250×90	190	300	125	195	4.7
315×63	190	300	115	195	4.7
315×90	190	300	115	200	4.7

Applications

1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

20191128173724_67017

Factory Test report

Test item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the
same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standar

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

We constantly stick to the theory “Quality To start with, Prestige Supreme”. We have been fully committed to offering our consumers with competitively priced quality products and solutions, prompt delivery and qualified service for China Supplier PE Pipe Fitting Pipe Fittings HDPE Pipe Tapping Saddle, Our products enjoy good popularity among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
China Supplier China PE Pipe Fittings and HDPE Tube, We integrate design, manufacture and export together with more than 100 skillful workers, strict quality controlling system and experienced technology.We keep long term business relationships with wholesaler and distributors form more than 50 countries, such as USA, UK, Canada, Europe and Africa etc.
