China Wholesale 45 Degree Elbow Pipe Fitting Suppliers – Injection Molding HDPE Electrofusion Fittings PN16 SDR11 PE100 Reducing Tee For Water Tubing – CHUANGRONG Detail:
Detail Information
| Product Name: | HDPE Electrofusion Fittings PN16 SDR11 PE100 Reducing Tee For Water Tubing | Standard: | EN 12201-3:2011,EN 1555-3:2010 |
|---|---|---|---|
| Material: | PE100 Virgin Raw Material | Application: | Gas,Water,Oil Etc |
| Technic: | Injection Molding | Connection: | Electrofusion |
Product Description
<div><br /><br /><br />
<div id=”>
Electrofusion isa method of joiningMDPE,HDPE and other plastic pipes using special fittings that have built-in electric heating elements which are used to weldthe joint together.
Electrofusion HDPE fittings(Include electrofusion reducing tee, Elbow, Reducer, End cap, Stub end etc.)are welded by electrofusion machine to connect HDPE pipes together: The electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt,Which jointHDPE pipe and fittings well.
| Products name | Electrofusion HDPE Reducing Tee |
| Sizes Available | As below specification sheet in detail |
| SDR | SDR11,SDR17 |
| PN | PN16,PN10 |
| Material Brand | SINOPEC, BASELL, SABIC, BOROUGE etc |
| Executive Standard | EN 12201-3:2011,EN 1555-3:2010 |
| Colors Available | Black color , blue color, Orange or as request. |
| Packing Method | Normal export packing. by carton |
| Production Lead Time | Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP. |
| Certificate | ISO, CE,BV,Factory Test Report |
| Supply Ability | 100000 Ton/Year |
| Payment Method | T/T, L/C at sight |
| Trading Method | EXW, FOB, CFR, CIF,DDU |

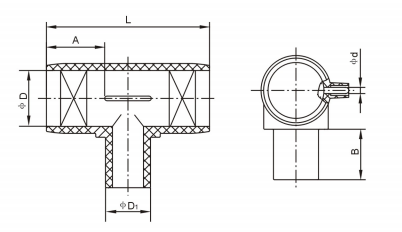

Specification
| Specifications
φD×D1×φD |
L
mm |
A
mm |
B
mm |
Φd
mm |
| 20×20×20 | 100 | 40 | 50 | 4.7 |
| 25×25×25 | 105 | 45 | 50 | 4.7 |
| 32×32×32 | 120 | 45 | 55 | 4.7 |
| 40×40×40 | 125 | 45 | 60 | 4.7 |
| 50×50×50 | 145 | 55 | 55 | 4.7 |
| 63×63×63 | 165 | 55 | 60 | 4.7 |
| 75×75×75 | 195 | 70 | 70 | 4.7 |
| 90×90×90 | 210 | 65 | 775 | 4.7 |
| 110×110×110 | 240 | 75 | 80 | 4.7 |
| 125×125×125 | 255 | 80 | 85 | 4.7 |
| 160×160×160 | 310 | 90 | 95 | 4.7 |
| 180×180×180 | 340 | 100 | 95 | 4.7 |
| 200×200×200 | 360 | 100 | 105 | 4.7 |
| 250×250×250 | 410 | 100 | 115 | 4.7 |
| 315×315×315 | 520 | 125 | 115 | 4.7 |
| 400×400×400 | 600 | 125 | 115 | 4.7 |
Workshop
Workshop
Product detail pictures:
