China Wholesale Hdpe Butt Welding Machine Suppliers – GPS Location CNC Hydraulic Butt Fusion Welding Machines For HDPE Pipe Fittings Welding – CHUANGRONG Detail:

Basic Information

Standard composition

1.Machine body

2.Milling cutter

3.Heating plate

4.Hydraulic control unit

5.Support

6.Clamps

Product Name: Automatic Welding Machine Working Range: 160-355/250-400/315-500/400-630MM
Usage: Pipe Fittings Welding Warranty: 1 Year
Single Phase: 50/60Hz Protection Level: IP54

Product Description

Application

CNC is an on-site butt welding machine for pipes and fittings in Polyethylene (PE), Polypropylene (PP), and other thermoplastic materials intended for the transport of water under high pressure.

We remind you that the use of such machines is limited to authorized skilled and certified personnel, in accordance with the Legislation and Regulations in force.

Viewing and downloading

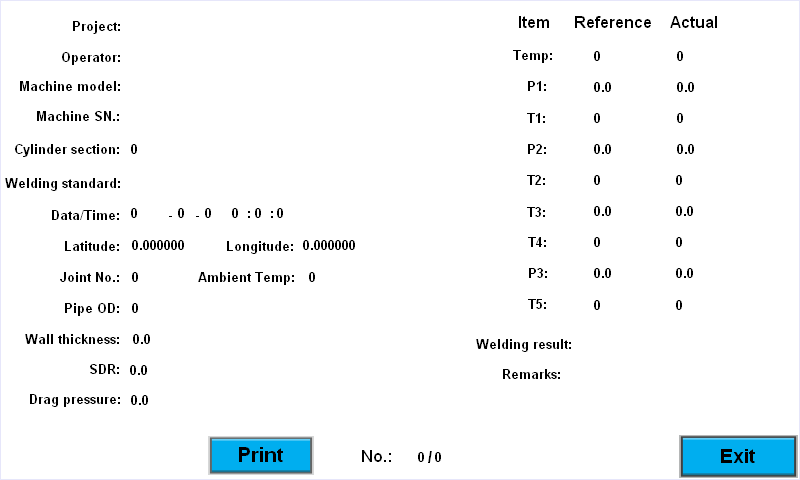

Click the Data Query button to enter the welding data management screen.




Features

GENERAL 160 250 315
Working range: Ø 63 ÷ Ø 160 mm Ø 75 ÷ Ø 250 mm Ø 90 ÷ Ø 315 mm
Materials:

HDPE, PB, PP, PVDF

Range of ambient temperatures:

-10 ÷ +40 °C

Power supply:

230 VAC  50-60 Hz

Nominal power 2600 W 3950 W 4950 W
Pressure’s working range:

Up to150 bar

Weight 80 Kg 144 Kg 194Kg
Welding cycle

Automatic

Memory capacity

4000 stored weldings

Transfer of stored data

pdf document on USB flash drive

Barcode traceability Pipe/Fitting upon ISO 12176-4Operator upon ISO 12176-3
GPS

Enabled

Noise (dBA)

LpA = 74 dBA

Chassis 160 250 315
Overall thrust section: 9.42 10.99 cm2 12.56 cm2
Dimensions: [ W×D×H ] 600x400x410 [mm] 960x650x950 [mm] 1090 x 800 x 1100 [mm]
Weight: 35  Kg 66 Kg 150 Kg
Facer 160 250 315
Nominal power 800 W 900 W 900W
Dimensions: [ W×D×H ] 430×330×80 [mm] 440×450×380 [mm] 600×460×390 [mm]
Weight: 7.5 Kg 15 Kg 21 Kg
Heater 160 250 315
Nominal power 1000W 2000W 3000W
Dimensions: [ W×D×H ] 350×50×450 [mm] 470×50×490 [mm] 470×50×600 [mm]
Weight: 3.6 Kg 8 Kg 13 Kg
Facer/heater holder 160 250 315
Dimensions: [ W×D×H ] 300×370×440 [mm] 380×265×600 [mm] 590×315×650 [mm]
Weight: 3.5 Kg 10 Kg 16 Kg
Hydraulic gearcase
Nominal power

1100 W

Pressure range:

up to 150 bar

Hydraulic oil: Viscosity class 46 o 68 ISO 3448Recommended :

- TEXACO RANDO HDZ 46

- ESSO UNIVIS N 46

- SHELL TELLUS T 46

INSERT DIAMETER (welght [kg] full set) 160 250 315
Ø 63mm 2.6 8.4
Ø 90 mm 2.3 8.0 16.0
Ø 110 mm 2.1 7.5 15.5
Ø 160 mm 6.0 14.0
Ø 200 mm 4.8 12.5
Ø 250 mm 10.5
On request Ø 75/125/140mm Ø 75/125/140/180/225mm Ø 125/140/180/225/280mm

SAFETY CRITERIA

The use of the of this product is intended exclusively to qualified personnel according to the standards in force.

Use the machine only for purposes as described on “Fields of Application” and according to the operator’s manual. Any other use is forbidden, since it may cause harm to persons, damage the machine or other objects.

Do not remove the safety devices (switches, micro-switches, seals, etc).

Replace defective or worn out parts only with Original spare parts.

Any intervention or repair on the machine has to be performed by qualified personnel.


Product detail pictures:

China Wholesale Hdpe Butt Welding Machine Suppliers –  GPS Location CNC Hydraulic Butt Fusion Welding Machines For HDPE Pipe Fittings Welding – CHUANGRONG detail pictures

China Wholesale Hdpe Butt Welding Machine Suppliers –  GPS Location CNC Hydraulic Butt Fusion Welding Machines For HDPE Pipe Fittings Welding – CHUANGRONG detail pictures

China Wholesale Hdpe Butt Welding Machine Suppliers –  GPS Location CNC Hydraulic Butt Fusion Welding Machines For HDPE Pipe Fittings Welding – CHUANGRONG detail pictures
