Material: | PP | Technics: | Injection Molding |
---|---|---|---|
Connection: | Male | Shape: | Reducing |
Head Code: | Square | Range: | From D25 Up To D110mm |
Working Pressure: | 200 Psi@73℃(23℃) | Application: | Water Supply,irrigation |
Color: | Blue,black Or As Requirement | Standard: | DIN 8076-3,ISO 14236, ISO13460 |
Certificate: | EN ISO 9001:2000 | Package: | Carton Box+plastic Bag |
Production Capacity: | 200000/month | Usage: | Water Industrial |
Keyword: | Tee | Port: | Shanghai,Nngbo Or As Required |
<div><br /><br />
<div id=”>

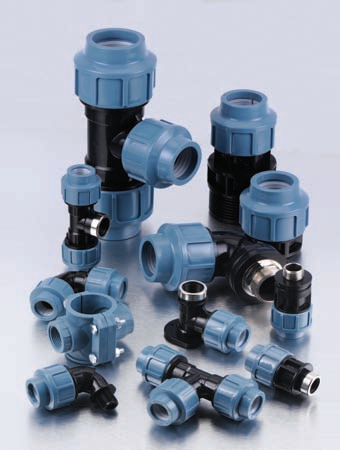

1 / 2 ” To 4 ” Female Thread PP Compression Tee With Ring Nut
Ested and approved by all leading certification bodies. Quality system: EN ISO 1549 4: 2019, anti-corrosion, can be used for hot and cold water supply
D | DN | PN | CTN |
20 x 1/2 | 15*15 | 16 | 100 |
20 x 3/4 | 15*20 | 16 | 100 |
25 x 1/2 | 20*15 | 16 | 60 |
25 x 3/4 | 20*20 | 16 | 60 |
25 x 1 | 20*25 | 16 | 60 |
32*1/2 | 25*15 | 16 | 40 |
32 x 3/4 | 25*20 | 16 | 40 |
32*1 | 25*25 | 16 | 40 |
32*1-1/4 | 25*32 | 16 | 40 |
40*1 | 32*25 | 16 | 30 |
40*1-1/4 | 32*32 | 16 | 30 |
40*1-1/2 | 32*40 | 16 | 30 |
50*11/4 | 40*32 | 16 | 15 |
50*11/2 | 40*40 | 16 | 15 |
50*2 | 40*50 | 16 | 15 |
63*11/2 | 50*40 | 16 | 10 |
63*2 | 50*50 | 10 | 10 |
63*2-1/2 | 50*65 | 10 | 10 |
75*2 | 65*50 | 10 | 6 |
75*2-1/2 | 65*65 | 10 | 6 |
75*3 | 65*80 | 10 | 6 |
90*3 | 80*80 | 10 | 6 |
90*4 | 80*100 | 10 | 6 |
110*3 | 100*80 | 10 | 4 |
110*4 | 100*100 | 10 | 4 |
1. Chamfer with bevel tool
2. Loosen the ring nut that has not been removed from the valve body and check that the O-ring and snap ring are in the correct position.
3. Insert the tube end without tightening the ring nut. Push the joint until the tube passes the O-ring and reaches the stop.
4. Tighten the ring by hand, and then tighten it further with a belt / chain wrench.
