China Wholesale Hdpe Pipe Welding Machine Pricelist – Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane – CHUANGRONG
China Wholesale Hdpe Pipe Welding Machine Pricelist – Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane – CHUANGRONG Detail:
Detail Information
| Condition: | New | Working Range: | 800-1200/1200-1600 |
|---|---|---|---|
| Usage: | Pipe Fittings Welding | Warranty: | 1 Year |
| Materials: | HDPE,PP,PVDF | The Heating Plate Temperature: | 170-250(±5℃)MAX270℃ |
Product Description

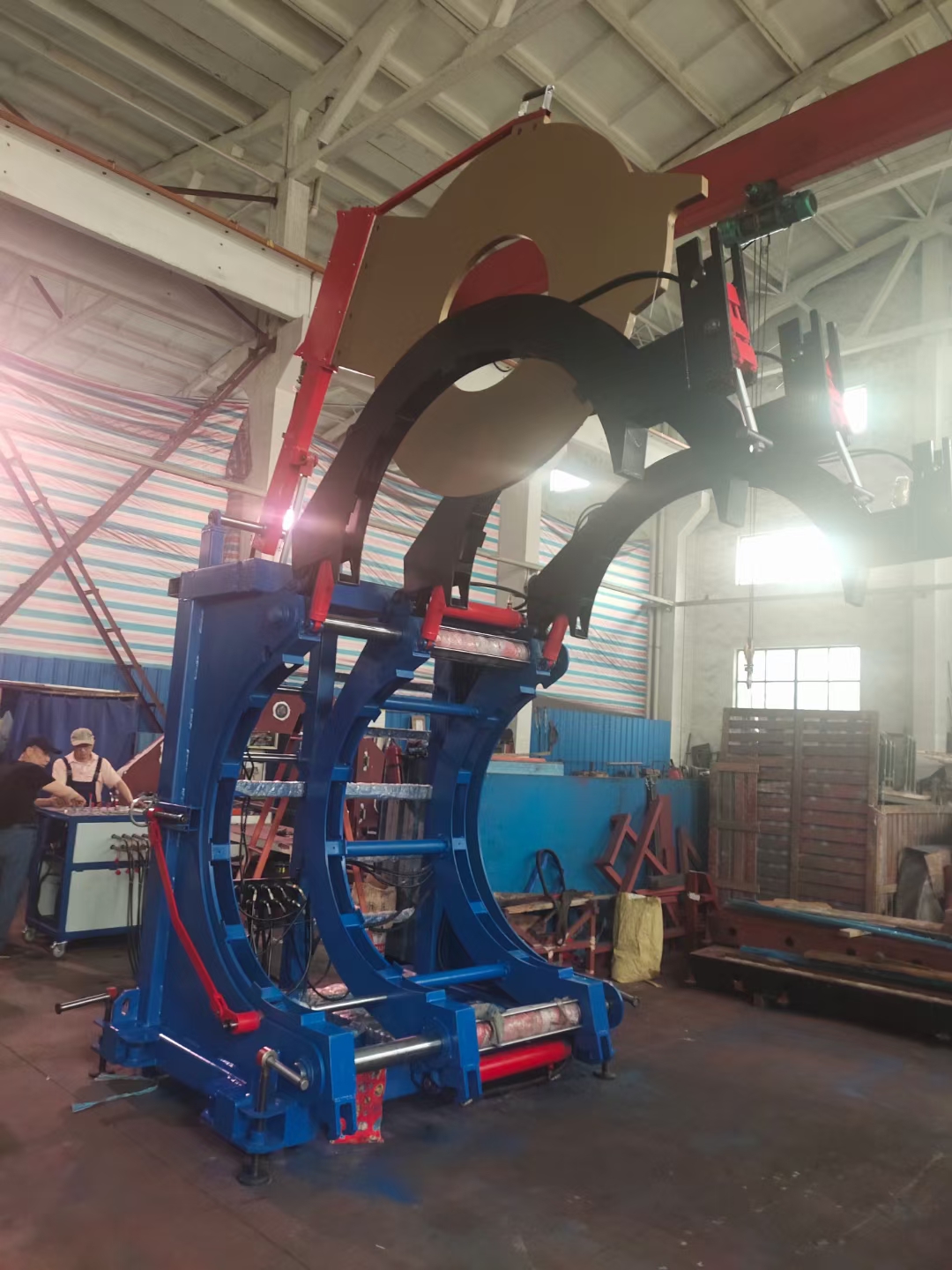

Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane
1200MM / 1600MM Pipe Welding Machine Description
This is a self-aligning welding machine with hydraulic clamps suitable for welding HDPE pipes for the transport of water and other fluids under pressure, up to DN1600mm.
The CRDH 1600 is designed in accordance to international standards(UNI10565,ISO12176-1). The CRDH1600 can weld fitings such as elbows,tees, branches and flange necks.
TECHNICAL PARAMETERS
| Model | CRDH 1200 | CRDH 1600 |
| Range(mm) | 800/900/1000/1100/1200 | 1200/1400/1600 |
| Type | Elbow,90 degree equal tees,cosses,Equal Branch Tee and Wye | |
| The Heating Plate Temperature | 170℃-250℃(±7℃)Max270℃ | 170℃-250℃(±7℃)Max270℃ |
| Power Supply | 36.5KW | 59KW |
| Total Weight | 1800kg | 2500kg |
| Optional Accessory | Stub end holder and special inserts | |
Uses and Features
-Robust machine body made of steel
-Steel hydraulic clamping
-Automotic detaching device of heating plate
-Raised platform deck for perfect monitoring of fusion process
-Easy to operate control panel.
-The data-logging compatible
-On board hydraulic control gearcase
-Pressure adjustment and pressure release valves for easy operations
-Hydraulically controller facer with safety microswitch
-Teflon coated heating plate with indipengdent tehrmometer
-From the rack, cutter, independent heating plates and bracket-Frame made of high strength materials and structures, 45 ℃ tilt design-Electric cutter, safety limit switch to prevent accidental start-cutter
Packing
00MM / 1600MM Pipe Welding MachinePacking
| CRDH 1200 | Body+ Hydraulic 2970*1980*2080 | 12.23 | 1972 | 2368 | |
| Frame 1880*1170*2360 | 5.19 | 1107 | 1297 | ||
| Total | 17.42 | 3079 | 3665 | 2 cases | |
Application
Product detail pictures:
Related Product Guide:
Our products are greatly recognized and trustworthy by users and will fulfill continually shifting economic and social requires for China Wholesale Hdpe Pipe Welding Machine Pricelist – Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane – CHUANGRONG , The product will supply to all over the world, such as: Poland, Barcelona, Southampton, We have now 48 provincial agencies in the country. We also have stable cooperation with several international trading companies. They place order with us and export solutions to other countries. We expect to cooperate with you to develop a larger market.
By Riva from Portugal - 2017.06.25 12:48
The company account manager has a wealth of industry knowledge and experience, he could provide appropriate program according our needs and speak English fluently.
By Louise from India - 2017.12.31 14:53
