Product Name: | PN16 SDR11 PE100 Electrofusion HDPE Fittings Reducer For Water Supply | Application: | Gas,Water,Oil Etc |
---|---|---|---|
Standard: | EN 12201-3:2011,EN 1555-3:2010 | Material: | PE100 Virgin Raw Material |
Specification: | 25*20mm~400*315mm PE100 PN16 SDR11 | Port: | China Main Port |
PN16 SDR11 PE100 Electrofusion HDPE Fittings Reducer for Water supply
Production Description of Electrofusion HDPE Reducer
-Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.
P2:4.7 Pin(4.0 welded bySwitched adaptor) P3:Printed Parameters P4:Embedded copper wire
1)Fusion Pin of Electrofusion HDPE fittings4.7mm Pin of Electrofusion HDPE fittings produced.
Besides switched adaptors for 4.0 Pin supplied to suit claw of 4.0 electrofusion machine.
2)Moulded-in welding parameters Welding parameters as per EN1555 is printed on the fittings, Such as Products’ name,OD(mm),PE100, PN16 SDR11.Bar code is also attached on the electrofusion fittings for scanning.
3)Element&Stops To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body. All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can be removed for use in,for example,repair situations.
4)High quality copper wire embed in the HDPE fittings which haveGood thermal conductivity.

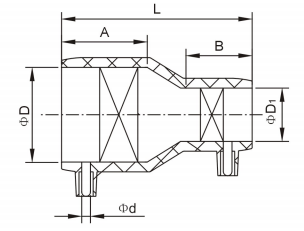

pecifications
φD×φD1 |
L
mm |
A
mm |
B
mm |
φd
mm |
25×20 | 95 | 45 | 35 | 4.7 |
32×20 | 95 | 45 | 45 | 4.7 |
32×25 | 95 | 40 | 45 | 4.7 |
40×25 | 100 | 50 | 40 | 4.7 |
40×32 | 100 | 50 | 40 | 4.7 |
50×25 | 110 | 55 | 40 | 4.7 |
50×32 | 110 | 55 | 40 | 4.7 |
50×40 | 110 | 50 | 50 | 4.7 |
63×25 | 115 | 60 | 40 | 4.7 |
63×32 | 120 | 60 | 40 | 4.7 |
63×40 | 120 | 55 | 40 | 4.7 |
63×50 | 120 | 55 | 50 | 4.7 |
75×50 | 120 | 65 | 50 | 4.7 |
75×63 | 130 | 65 | 50 | 4.7 |
90×50 | 140 | 65 | 55 | 4.7 |
90×63 | 140 | 65 | 55 | 4.7 |
90×75 | 145 | 65 | 60 | 4.7 |
110×63 | 160 | 75 | 55 | 4.7 |
110×75 | 155 | 75 | 60 | 4.7 |
110×90 | 155 | 75 | 65 | 4.7 |
125×63 | 160 | 80 | 60 | 4.7 |
125×90 | 160 | 80 | 70 | 4.7 |
125×110 | 165 | 85 | 69 | 4.7 |
160×90 | 195 | 94 | 74 | 4.7 |
160×110 | 195 | 95 | 75 | 4.7 |
160×125 | 195 | 95 | 75 | 4.7 |
200×110 | 210 | 95 | 80 | 4.7 |
200×160 | 210 | 95 | 85 | 4.7 |
250×110 | 230 | 100 | 80 | 4.7 |
250×160 | 230 | 110 | 90 | 4.7 |
250×200 | 230 | 110 | 100 | 4.7 |
315×200 | 240 | 100 | 100 | 4.7 |
315×250 | 240 | 100 | 100 | 4.7 |
400×250 | 260 | 110 | 105 | 4.7 |
400×315 | 260 | 110 | 105 | 4.7 |
1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
