China Wholesale Pipe Alignment Tools Manufacturers – Plastic Pipe Tools Heating Plate for Plastic Pipe and Fitting Butt Welding – CHUANGRONG Detail:

Detail Information
Power Supply: 230 V – Single Phase – 50/60 Hz Working Temperature: Te:180oc-280oc;TF 210oc
Ambient Temperature: -5o – 40oc Time To Reach Welding Temperature: Te:~ 10 Min
Materials: Te:HDPE,PP,PVC,:TF:HDPE Model: TP-125/160/200/300/315
Product Description

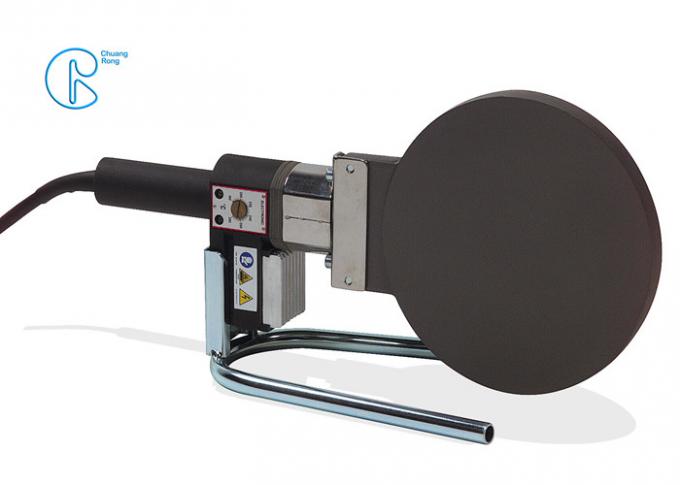

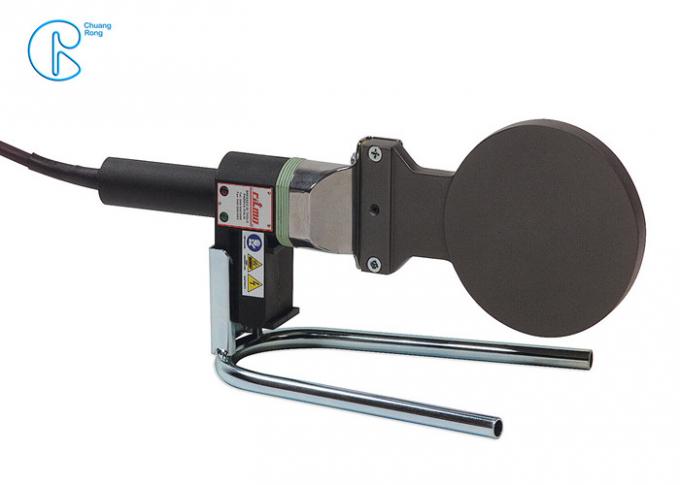

Plastic Pipe Tools Heating Plate for Plastic Pipe and Fitting butt Welding

Heating Plates (TP125,TP125/45 deg,TP160,TP200,TP300)

Model TP 125 TP 125/45° TP 200 TP 300
Power supply 230 V – Single phase – 50/60 Hz
Working temperature TE:180ºC-280ºC;TF 210ºC
Ambient temperature -5º – 40ºC
Time to reach welding temperature TE:~ 10 min
Materials TE:HDPE,PP,PVC,:TF:HDPE
Pipe Max O.D. 125mm 110mm 180mm 280mm
Absorbed Power 700W 500W 1200W 1300W
Dimension 140*50*410mm 140*130*370mm 200*50*440mm 300*50*550mm
Weight 2.16 kg 1.95kg 3.21 kg 5.09kg

Plastic Pipe Tools Heating Plate for Plastic Pipe and Fitting Butt Welding

Series of manual instruments equipped with an aluminum heating plate Teflon-coated (PTFE) and a pratical heat-insulated plastic handle. Available in two versions:one with a fixed mechanical thermostat (TF) and one with an adjustable electronic thermoregulator (TE) . The heating plates are available in different shapes and working ranges according to the operator’ requirements.

Technical Data

-Manual equipment-Compact, lightweight, highly reliable-Different working shapes-Working range: Up to Ø 280 mm-Available with: A fixed mechanical thermostat (TF)-An adjustable electronic thermoregulator (TE)-Power supply: 110 V and 230 V

Plastic Pipe Tools Heating Plate for Plastic Pipe and Fitting Butt Welding

Application

ON REQUEST (ACCESSORIES)-Bench vice support (the same for all models except TP 300)-Transportation box in electro-painted steel
