Good Quality China High Quality HDPE Pipe Fittings Stub End Flange Adapter Welding for HDPE Pipe PE100

Short Description:

1. Name: EF Stub Flange

2. Size: dn 50-630mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar , Up to 315mm SDR17 Water PN10

4. ISO4427 , ISO4437/ EN12201, ISO1555

Send email to us Send email

Product Detail

Product Tags

We purpose to understand high quality disfigurement with the output and supply the top service to domestic and overseas buyers wholeheartedly for Good Quality China High Quality HDPE Pipe Fittings Stub End Flange Adapter Welding for HDPE Pipe PE100, We have deep cooperation with hundreds of factories all over China. The goods we supply can match with the different needs. Choose us, and we won’t make you regret!
We purpose to understand high quality disfigurement with the output and supply the top service to domestic and overseas buyers wholeheartedly for China HDPE Pipe, Pipe Fittings, We have been perfectly devoted to the design, R&D, manufacture, sale and service of hair products during 10 years of development. We have introduced and are making full use of internationally advanced technology and equipment, with advantages of skilled workers. “Dedicated to providing reliable customer service” is our aim. We are sincerely looking forward to establishing business relationships with friends from at home and abroad.

Detail Information

Product Name:	HDPE Electrofusion Fittings Flange Adapter For Gas And Water Supply PN16 SDR11 PE100	Connection:	Electrofusion
Standard:	EN 12201-3:2011,EN 1555-3:2010	Material:	PE100 Virgin Raw Material
Technic:	Injection Molding	Application:	Gas,Water,Oil Etc

Product Description

lectrofusion isa method of joiningMDPE,HDPE and other plastic pipes using special fittings that have built-inelectric heating elements which are used toweldthe joint together.

Electrofusion HDPE fittings(Include electrofusion reducing tee, Elbow, Reducer, End cap, Stub end etc.) are welded by electrofusion machine to connect HDPE pipes together: The electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt,Which jointHDPE pipe and fittings well.

P₂:4.7 Pin(4.0 welded bySwitched adaptor) P_3:Printed Parameters P_4:Embedded copper wire

1)Fusion Pin Invented by fusion,the fusamtic pin provides a totally automatic method for ensuring the correct welding parameters are used.Within each fusamatic pin is resistor.When the electrofusion box is connected to the fitting,the fusamatic pin enables it to automatically identify the correct fusion time requited to make the joint.

All the operator has to do is press go.

2)Moulded-in welding paramet Manual welding parameters are moulded into the body of all fusion’s fitting.Information provided includes fitting size,material(PE80 or PE100),applicable pipe SDRs,weld parameters,and pressure ratings for gas and water applications.

3)Element&Stops

To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body.

All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can be removed for use in,for example,repair situations.

Specification

20191119151614_22676

Specifications φdn	Φdn1	Φdn2	L mm	A mm	B mm	Φd
50	89	65	116	110	17	4.7
63	102	79	115	115	18	4.7
75	121	94	125	125	20	4.7
90	139	109	140	140	23	4.7
110	172	139	145	145	25	4.7
160	228	189	152	152	28	4.7
200	289	234	174	174	30	4.7
250	339	280	123	123	32	4.7
315	390	349	127	127	39	4.7
400	513	436	153	153	39	4.7

Workshop

Certification

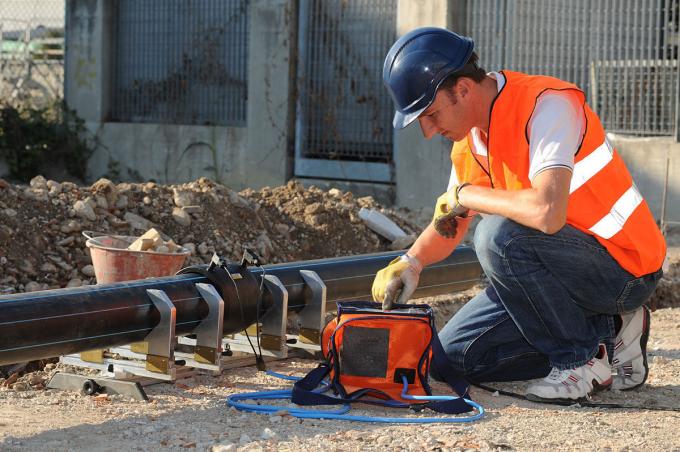

Application

20191128181441_10162
