1. Modle :ELEKTRA315

2. Working range: 20-315mm

3. Supply power:  3500W

4.  With Scanner


Product Detail

Product Tags

As a way to ideal meet up with client’s desires, all of our operations are strictly performed in line with our motto “High Top quality, Competitive Cost, Fast Service” for Good Wholesale Vendors China Butt Fusion Stub End Black PE Electrofusion Flange Adaptor Plastic Tubes HDPE Pipe Fitting with Price List, Should you be hunting for a top quality, quickly delivery, very best immediately after provider and great cost supplier in China for long-term company partnership, we are going to be your most effective choice.
As a way to ideal meet up with client’s desires, all of our operations are strictly performed in line with our motto “High Top quality, Competitive Cost, Fast Service” for China HDPE Fitting, Electro Fusion Fitting, Our products are very popular in the word, like South American, Africa, Asia and so on. Companies to “create first-class products” as the goal, and strive to provide customers with high quality products, provide high-quality after-sales service and technical support, and customer mutual benefit, create a better career and future!

Detail Information
Input Voltage: 110V-230V Power: 4000W
Maximum Output Corrent: 100A Protection Degree: IP 54
Dimensions Carrying Case(WxDxH): 405*285*340mm Weight Machine: 16kg
Product Description
Electrical Welding HDPE PP PP – R Water Gas Fire Sprinkler Tube Machine

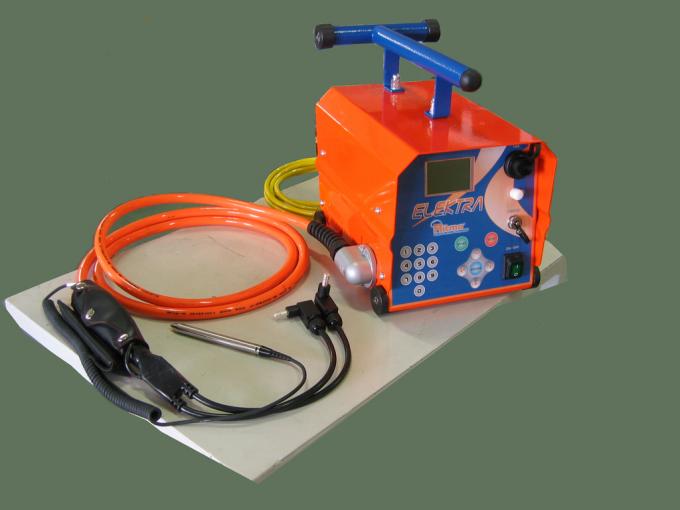

Electrical welding machine- ELEKTRA 315Description

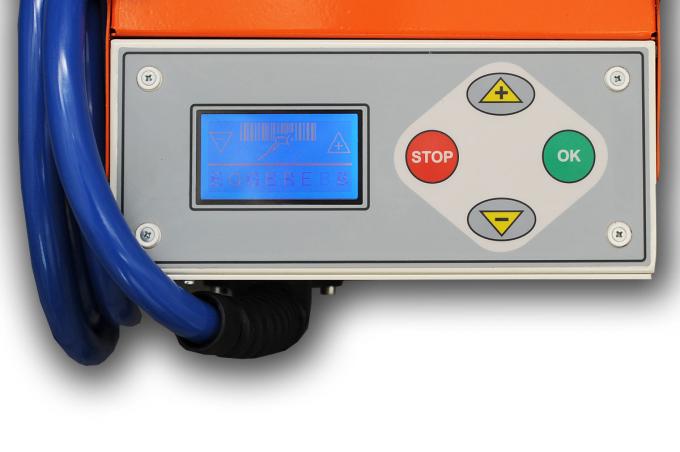

ELEKTRA 315 is an universal electrofusion machine,suitable for welding pipe/fittings for the transport of gas, water and for welding fire sprinkler system (HDPE,PP,PP-R,couplings for 8 to 48 V).The Elektra 315 machine is made in compliance with international standard. Composed of:machine body and carring case,intuitive control panel an in built memory with 500 welding cycles,featuring the possiblity of transferring data to a Pc/Laptop and an laser scanner-barcode reading system that allows the automatic setting of the welding parameters.

Stand composition:

1. Universal

2. Laser scanner

3. Pen Drive

4. Manual scraper

On request:

1. Software Ritmo Transger

2. Adapter DB9M-USB

Electrical welding machine- ELEKTRA 315Technical Features
Working range
20-315mm
Power supply
110/230V Sihgle Phase 50/60 Hz
Absorbed power
4000W
Max.output curent
100A
60% Duty Cycle output
60A
Memory capacity
500 report
Protection degree
IP 54
Weight machine body
~16 kg (35.5lb)
Dimensions machine body
263×240×300mm;10.3″×9.4″×1.8″
Dimensions transport case
405×285×340mm; 16″×11.2″×13.4″
4000W Electrofusion Welding Machine , HDPE PP PP - R Water Gas Fire Sprinkler Tube Machine
Electrical welding machine- ELEKTRA 315 Packing

Normal export packing:Inner packing is aluminum case, outside is carton

Dimensions:40.5×28.5×34mm

N.W:16kg

G.W:20kg

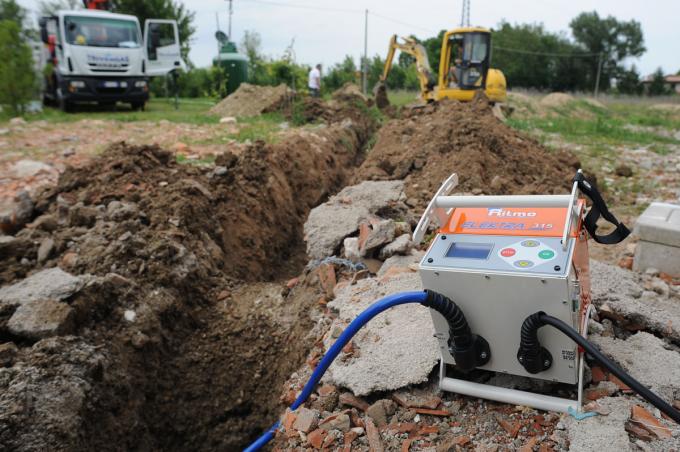

Electrical welding machine- ELEKTRA 315Applications
4000W Electrofusion Welding Machine , HDPE PP PP - R Water Gas Fire Sprinkler Tube Machine
4000W Electrofusion Welding Machine , HDPE PP PP - R Water Gas Fire Sprinkler Tube Machine
