China Good Wear-resistance Customized PE100 HDPE Poly Pipe for Mining Manufacture and Factory

Good Wear-resistance Customized PE100 HDPE Poly Pipe for Mining

Short Description:

1. Size: DN20-1600mm

2. Pressure : SDR33- SDR7.4, PN4-PN25.

3. Material: 100% Virgin PE80, PE100, PE100-RC.

4. Standard: ISO 4427, EN 12201, ASTM F714,AS/NZS 4130, DIN 8074, GOST 18599, IPS.

5. Packing: 11.8m, or 5.8m/pcs for straight, 50-200m by coils for DN20-110mm.

6. Delivery: 3-15 days depending on the total quantity.

7. Inspection: Raw material inspection.Finished product inspection.Third party inspection on request.

8. Fittings: OD20-1600mm, SDR26-SDR7.4, Socket fusion, Butt fusion, Electrofusion, Fabricated, Machined, Compression fittings.

Send email to us Send email

Product Detail

Specification

Application&Certifications

Product Tags

Detail Information

CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

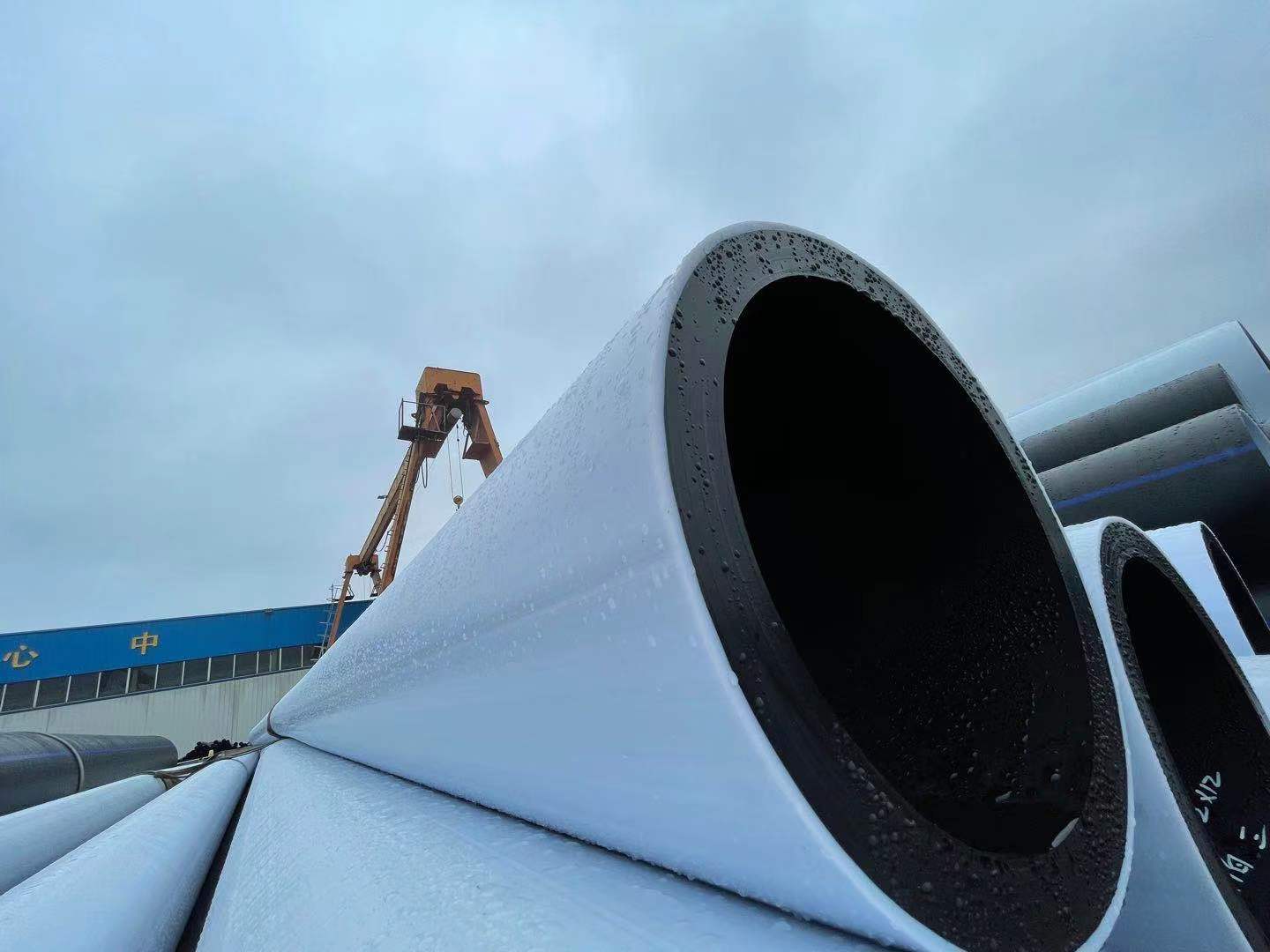

Good Wear-resistance Customized PE100 HDPE Poly Pipe for Mining

Products Details		Company/Factory Strength
Name	Good Wear-resistance Customized PE100 HDPE Poly Pipe for Mining	Production Capacity	100,000 Ton/Year
size	DN20-1600mm	Sample	Free sample available
Pressure	PN4- PN25, SDR33-SDR7.4	Delivery time	3-15 days, depending on the quantity
Standards	ISO 4427, ASTM F714, EN 12201, AS/NZS 4130, DIN 8074, IPS	Test/inspection	National standard laboratory, Pre-delivery inspection
Raw Material	100% Virgin l PE80, PE100, PE100-RC	Certificates	ISO9001, CE, WRAS, BV, SGS
Color	Black with blue stripes, Blue or others colors	Warranty	50 years with normal use
Packing	5.8m or 11.8m/length, 50-200m/roll, for DN20-110mm.	Quality	QA & QC system, Ensure traceability of each process
Application	Drinking water, Fresh water, Drainage, Oil and Gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting...	Service	R&D, production, sale and installation, after-sales service
Matching products: Butt fusion, Socket fusion, Electrofusion, Drainage, Fabricated, Machined fitting, Compression fittings, Plastic Welding machines and tools, etc.

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com

Product Description

High Density Polyethylene (HDPE) piping systems are used all over the world for the supply and conveying of several kinds of media, including liquid, gas and powers as well as in mining and quarry applications.

High Density Polyethylene (HDPE) pipework systems have the main advantages over steel and ductile iron systems if lightness of weight and freedom from corrosion. The rapid growth in use of polyethylene is due in part to benefits over steel and iron systems, but possibly more to the development of several advanced and easy jointing techniques. Polyethylene has very good fatigue strength and special provision for surges frequently allowed when designing other thermoplastic pipework systems (as PVC) are not normally necessary.

High Density Polyethylene (HDPE) pipes are produced in size up to 2500mm in diameter, with nominal pressure rating PN4, PN6, PN10, up to PN25 (other pressure ratings also available). All pipes and fittings are manufactured in accordance with current EN12201, DIN 8074, ISO 4427/ 1167 and SASO Draft No.5208.

High Density Polyethylene (HDPE) piping system are used worldwide for conveying of water as well as for the transportation of hazardous fluids. It offers the following advantages to the customer:

CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 80 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: China Wholesale 180mm Pe Pipe Manufacturers – ISO4437 HDPE Pipe PE80 or PE100 MDPE Pipe For Gas Supply – CHUANGRONG

Next: PE80/PE100 20-110mm Socket / Fusion Stop Valve Plumbing Water System

PE100 HDPE Poly Pipe for Mining

PE100	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
Outside Diameter (mm)	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness (en)
20	-	-	-	-	-	-	2.0	2.3	3.0
25	-	-	-	-	-	2.0	2.3	3	3.5
32	-	-	-	-	2.0	2.4	3.0	3.6	4.4
40	-	-	-	2.0	2.4	3.0	3.7	4.5	5.5
50	-	-	2.0	2.4	3.0	3.7	4.6	5.6	6.9
63	-	-	2.5	3.0	3.8	4.7	5.8	7.1	8.6
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-
1400	34.3	42.9	53.5	66.7	82.4	102.9	-	-	-
1600	39.2	49	61.2	76.2	94.1	117.6	-	-	-

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

HDPE pipes have been in existence sicne the mid 50’s . The experience shows tha HDPE pipes is solution to most pipe problems being recogized by clients and engineering consultants as the ideal pipe material for many pressure and non pressure applications from water and gas distrutionto gavity , sewers and surface water drainage for both new & rehabilitation projects.

Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber, food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field.

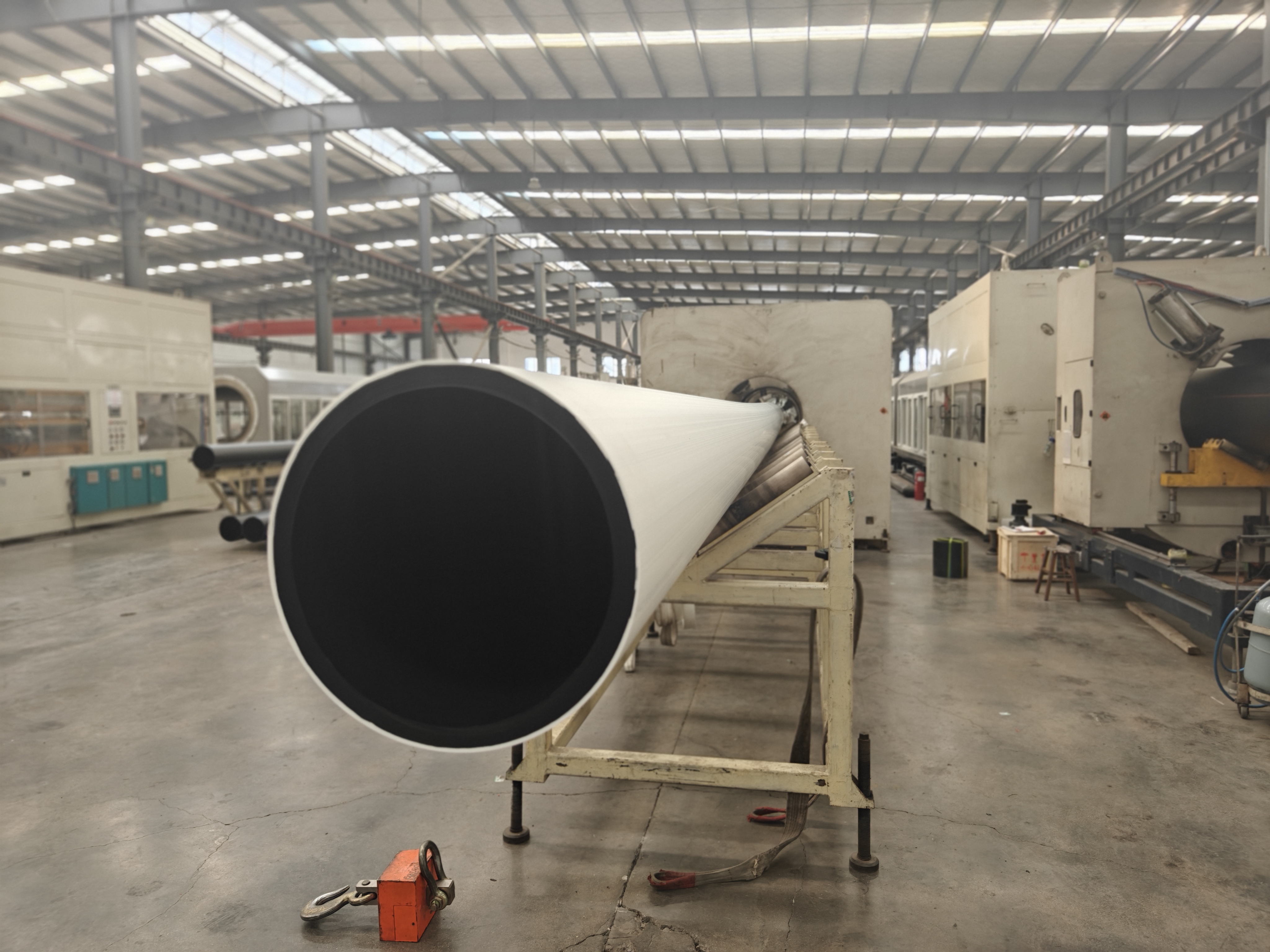

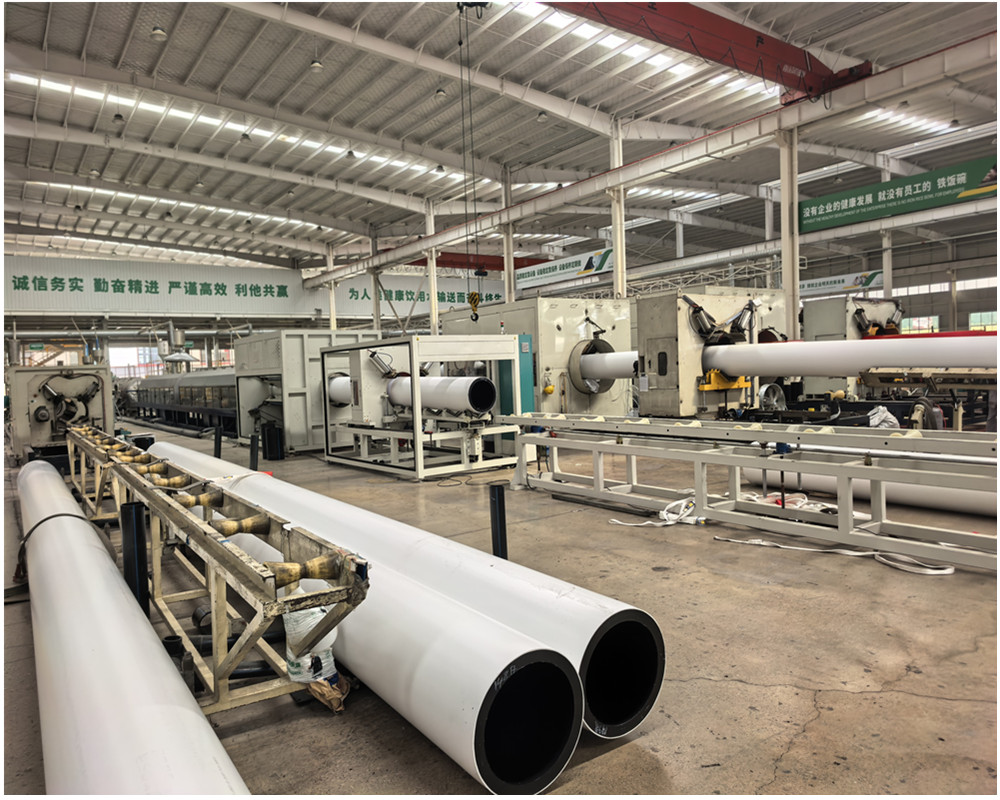

CHUAGNRONG owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

We can supply ISO9001-2015,WRAS, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
