China Hot sale Factory China HDPE Electrofusion Pipe Fittings SDR11 SDR17 Pn10 Pn16 PE Electro Fusion Couplings Manufacture and Factory

Hot sale Factory China HDPE Electrofusion Pipe Fittings SDR11 SDR17 Pn10 Pn16 PE Electro Fusion Couplings

Short Description:

1. Name: EF Multiseal Tapping Tee

2. Size: dn63-315mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar

4. ISO4437/ EN1555

Send email to us Send email

Product Detail

Product Tags

We are convinced that with joint efforts, the business between us will bring us mutual benefits. We can assure you product quality and competitive price for Hot sale Factory China HDPE Electrofusion Pipe Fittings SDR11 SDR17 Pn10 Pn16 PE Electro Fusion Couplings, Honest cooperation with you, altogether will develop happy tomorrow!
We are convinced that with joint efforts, the business between us will bring us mutual benefits. We can assure you product quality and competitive price for China HDPE Electrofusion Coupling, Pn16 D32 HDPE Pipe Fittings, Our company has already had a lot of top factories and experienced technology teams in China, offering the best goods, techniques and services to worldwide customers. Honesty is our principle, specialist operation is our work, service is our goal, and customers’ satisfaction is our future!

Detail Information

Application:	Gas,Water,Oil Etc	Product Name:	Electrofusion HDPE Fittings Branch Saddle For Gas Supply PN16 SDR11 PE100
Specification:	6332mm~31590mm PE100 PN16 SDR11	Standard:	EN 12201-3:2011,EN 1555-3:2010
Port:	China Main Port	Material:	PE100 Virgin Raw Material

Product Description

lectrofusion HDPE Fittings Branch Saddle for Gas supply PN16 SDR11 PE100

Production Description of Electrofusion HDPE Branch Saddle

Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Products name	Electrofusion HDPE Tapping Branch Saddle
Sizes Available	As below specification sheet in detail
SDR	SDR11
PN	PN16
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 1555-3:2010
Colors Available	Black color or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity. Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification

1245974178423783426

specifications φD×D1	L mm	A mm	B mm	H mm	d mm
63×32	110	100	45	80	4.7
90×63	145	155	80	145	4.7
110×32	145	160	80	145	4.7
110×63	145	160	80	145	4.7
160×63	190	230	100	185	4.7
163×90	190	230	100	185	4.7
200×63	190	235	110	185	4.7
200×90	190	235	115	195	4.7
250×63	190	300	125	195	4.7
250×90	190	300	125	195	4.7
315×63	190	300	115	195	4.7
315×90	190	300	115	200	4.7

Applications

1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

20191128173724_67017

Factory Test report

Test item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the
same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standar

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

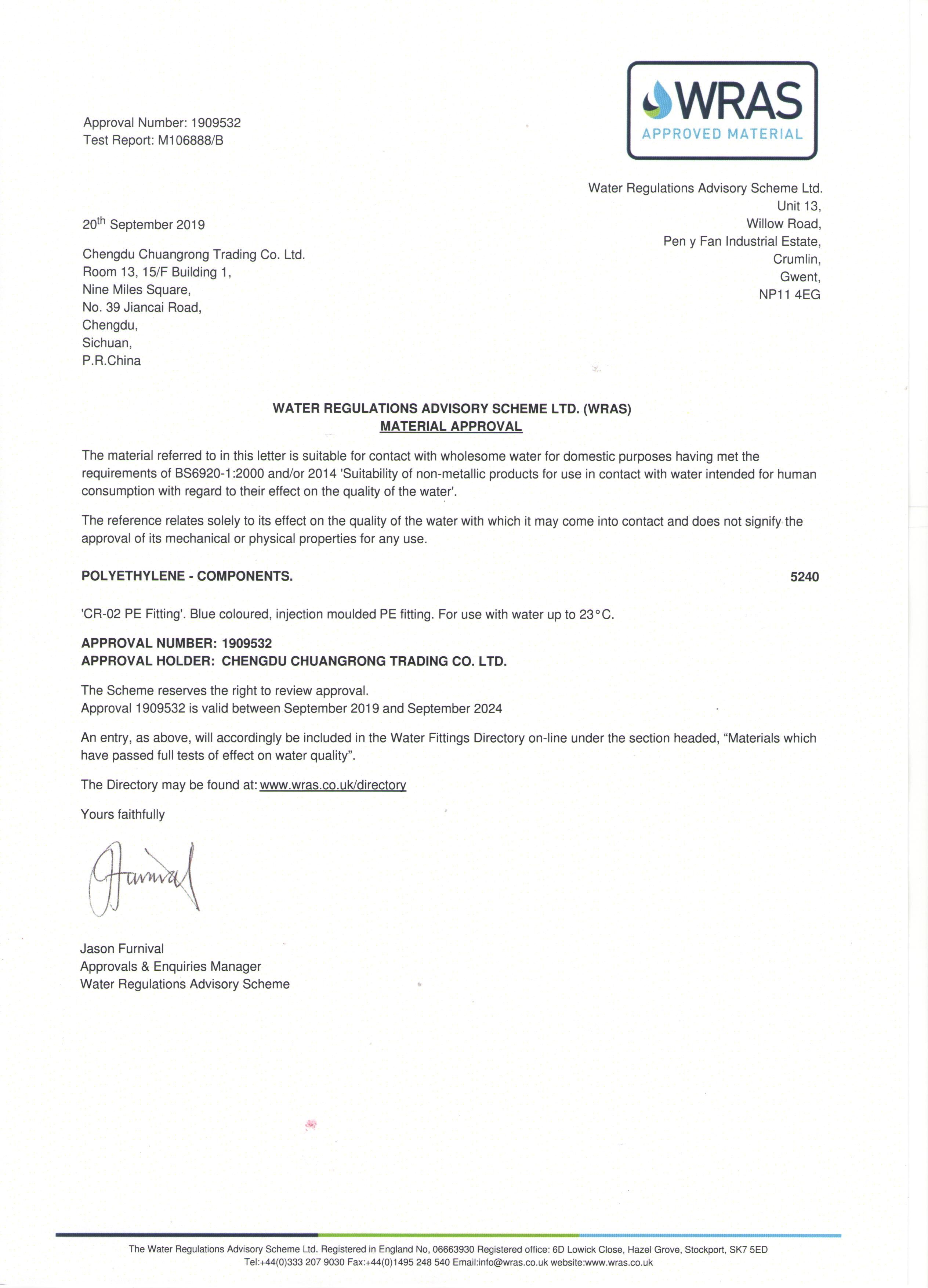

WRAS FITTINGS
