China Large Size High Pressure Butt Fusion Multi 11°-90° Angle Sweep Seamless Bend/ Elbow HDPE Machined Fittings Manufacture and Factory

Large Size High Pressure Butt Fusion Multi 11°-90° Angle Sweep Seamless Bend/ Elbow HDPE Machined Fittings

Short Description:

1. Name: HDPE Sweep Bend/ Elbow

2. Size: 110-1800mm

3. Pressure: SDR26, SDR21,SDR17, SDR13.6 SDR11, SDR9, SDR7.4

4. Standard: ASTM, ISO 4427, EN12201, EN1555

5. Packing: Cartons or bags.

6. Delivery: 3-7 days depending on the total quantity.

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send email to us Send email

Product Detail

Specification&Procession

Application&Certifications

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

Large size High pressure High Density Polyethylene (HDPE) fittings are made from the thick-walled pipe blanks and bars. The maximum outer diameter of the thick-walled hollow bar is up to 2500mm. Thick-walled pipe blanks and bars can make for various pipe fittings , which are difficult to process by injection molding, so as to solve many problems encountered in the design, construction and installation of PE pipes.

It can be produced and processed according to ASTM, ISO 4427, EN12201, EN1555 and other standards, concentric reducer, eccentric reducer, tee, mud tee, pipe cap flange and other customized pipe fittings, etc., can be customized according to drawings. Range: 110-2500mm, pressure sdr17-sdr6, the pipe fittings produced by our company have been widely used in the field of water supply, nuclear power plant, oiling & gas, district heating minning, water treatment and sea desalination projects etc.

Large Size High Pressure Butt Fusion Multi 11°-90° Angle Sweep Seamless Bend/ Elbow

Type	Specification	Diameter(mm)	Pressure
Large Size High Pressure Machined fittings	Sweep Bend	90-400mm(3D radius) 400-1800mm(2radius)	PN6-PN25
	Equal Tee	90-2500mm	PN6-PN25
	Reducing Tee	90-2500mm	PN6-PN25
	Y Lateral/ Junction/WYE45˚ or 60˚ Tee	90-2500mm	PN6-PN25
	Invert Tee/ Scour Tee	90-2500mm	PN6-PN25
	Cross	90-2500mm	PN6-PN25
	Flange Adaptor(Stub end/Full Face/IPS/DIPS MJ Adaptor	90-2500mm	PN6-PN25
	Concentric Reducer	90-2500mm	PN6-PN25
	Eccentric Reducer	90-2500mm	PN6-PN25
	End cap	90-2500mm	PN6-PN25
	Large Size Electrofusion Coupler	63-1800mm	PN6-PN25
	Large Size Electrofusion Saddle	Branch up to 1200mm	PN6-PN25

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com

Product Description

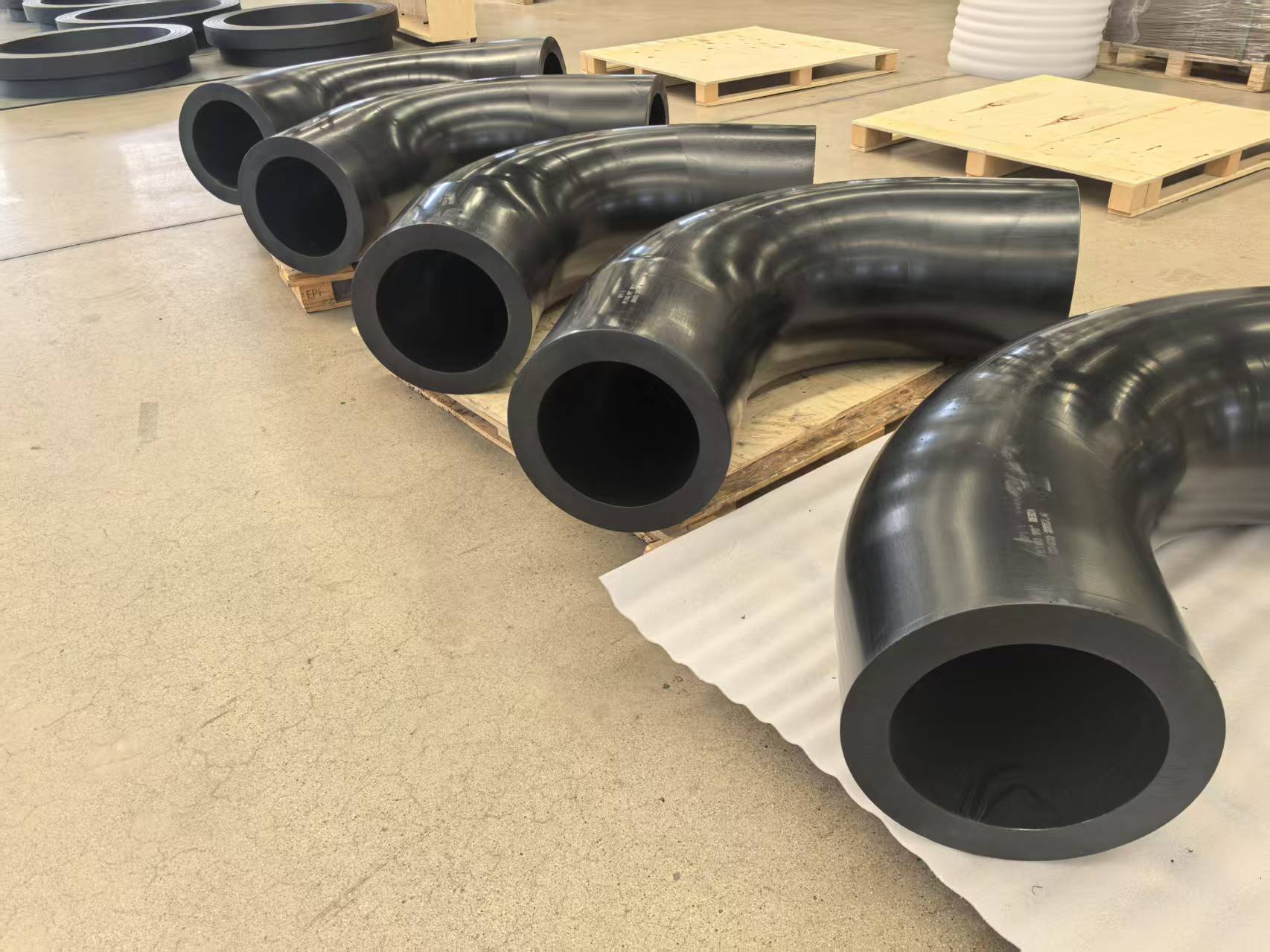

CHUANGRONG HDPE Sweep Seamless Bend/Elbow

CHUANGRONG produce a full range of HDPE fittings in both metric and inch sizes up to 80" and 2000mm.

Products exported to USA, Canada, Latin America, Australia, South Africa, Peru,Asian, and African countries ect.

With WRAS, CE ceritificate, products are welcomed by more customers.

Our product application in gas,water, minning, oiling gas, industry is rich.

Besides the injection moulded fittings (Both BF &EF) up to 1200mm and 48".

We developped heavy duty fittings from hollow bars up to 2000mm in PN25, PN20 for energy application.

Material: PE100
Pressure Rating: 2.5 Mpa, 2.0Mpa,1.6 Mpa
Size: Up to 2000mm
Standard: ISO4427
Angle: 11°-90°

CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: PE100 40-2000mm Machined Flange Adaptor/ Full face ( Stub End) HDPE Sipgot Fittings

Next: PE100 Large Size Machined Eccentric Reducer Butt Welding HDPE Pipe Fittings

Size(mm)	SDR7	SDR9	SDR11	SDR17	SDR21
110	V	V	V	V	V
125	V	V	V	V	V
160	V	V	V	V	V
180	V	V	V	V	V
200	V	V	V	V	V
225	V	V	V	V	V
250	V	V	V	V	V
315	V	V	V	V	V
355	V	V	V	V	V
400	V	V	V	V	V
450	V	V	V	V	V
500	V	V	V	V	V
560	V	V	V	V	V
630	V	V	V	V	V
710	V	V	V	V	V
800		V	V	V	V
900			V	V	V
1000			V	V	V
1200			V	V	V
1400			V	V	V
1600			V	V	V

We can supply ISO9001-2015,WRAS, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
