China Newly Arrival HDPE Pipe Fittings DN225 Electrofusion Coupling SDR11 SDR17 Manufacture and Factory

Newly Arrival HDPE Pipe Fittings DN225 Electrofusion Coupling SDR11 SDR17

Short Description:

1. Name: EF Coupler

2. Size: dn20-1200mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar

4. Up to 315mm Water PN10 or 110-315mm PN20

5. ISO4427 , EN12201/ ISO4437, EN1555

Send email to us Send email

Product Detail

Product Tags

While in the past few years, our organization absorbed and digested innovative technologies both equally at home and abroad. Meanwhile, our organization staffs a group of experts devoted for the advancement of Newly Arrival HDPE Pipe Fittings DN225 Electrofusion Coupling SDR11 SDR17, We warmly welcome shoppers, company associations and pals from everywhere in the planet to get in touch with us and seek cooperation for mutual gains.
While in the past few years, our organization absorbed and digested innovative technologies both equally at home and abroad. Meanwhile, our organization staffs a group of experts devoted for the advancement of China PE Coupling and Pipe Connection, We are eager to cooperate with foreign companies which care much on the real quality, stable supply, strong capability and good service. We can provide the most competitive price with high quality,because we’ve been much MORE Specialist. You are welcomed to visit our company at any time.

Detail Information

Product Name:	HDPE Electrofusion Fittings Coupler For Water Supply PN16 SDR11 PE100	Standard:	EN 12201-3:2011,EN 1555-3:2010
Material:	PE100 Virgin Raw Material	Norminal Pressure:	PN16
SDR:	SDR11	Port:	China Main Port

Product Description

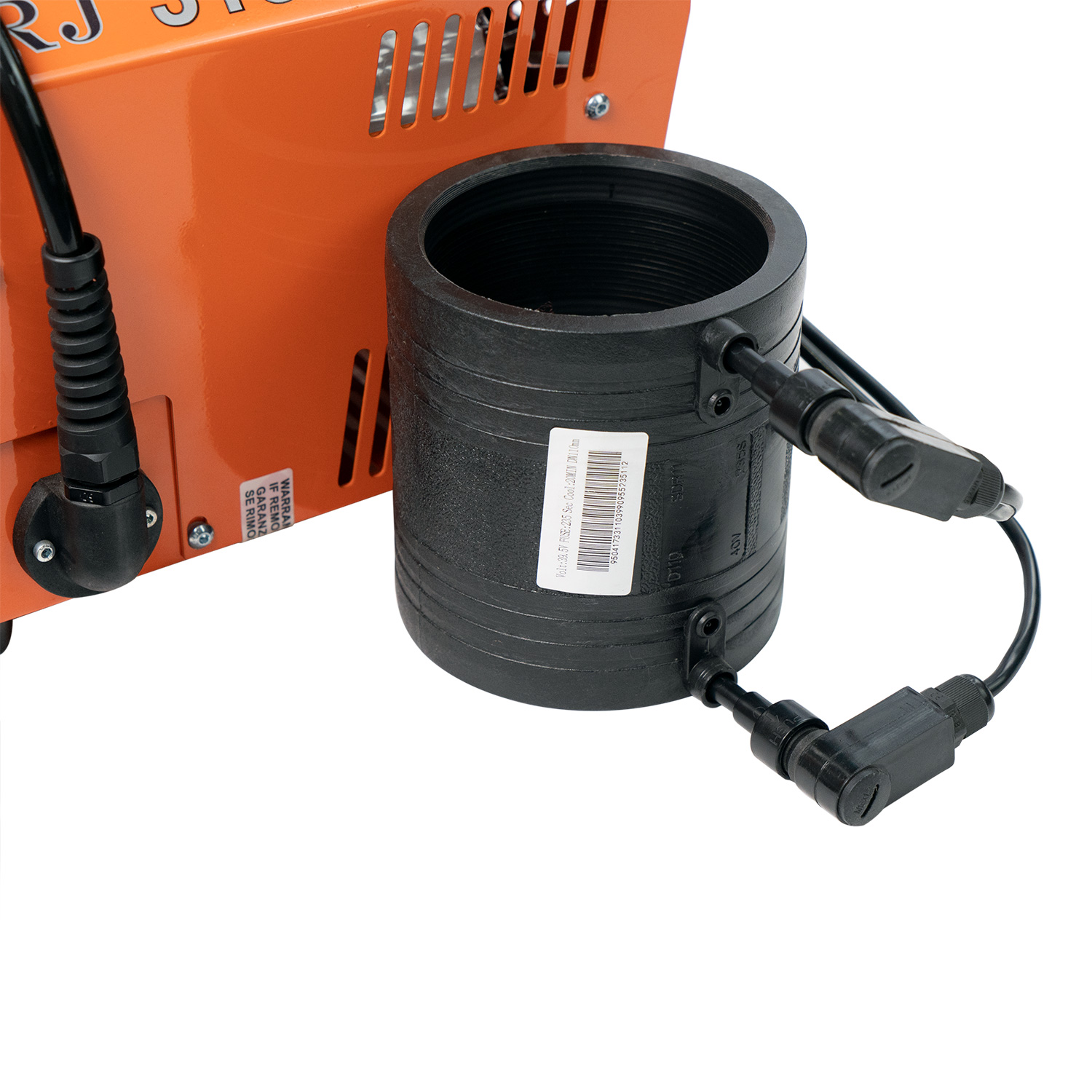

HDPE Electrofusion Fittings Coupler for Water supply PN16 SDR11 PE100

Production Description of Electrofusion HDPE Couplers

-Electrofusion HDPE fittings arewelded by electrofusion machine to connect HDPE pipes together: Afterelectrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electricfuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Electrofusion coupler or coupling is the most commonly used HDPE fittings whatever for water supply,Gas orFire fighting etc.

PN20&PN16&PN10 is available.

Main reasons to Choose CHUANGRONG Electrofusion HDPE Fittings

CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business activities.

HDPE is a green environmental protection material, which can be recycled without causing pollution to the environment.

We work hard to conserve natural resources and constantly strive to optimize the environmental performance of our products and how they used.

1.Cost-effective

Highest cost performance

Compared with traditional steel pipes, it is light and easy for workers to install and repair

Low installation and maintenance costs

Easy loading and transportation

Suitable for non-excavation

2.Safety and Reliability

Life span of at least 50 years

Completely maintenance-free

In all weather conditions

Excellent chemical resistance

Good impact and abrasion resistance

3. Flexiblity

Multiple connection methods, suitable for electric melting, hot melting, socket, flange connection.

Electrofusion is the most efficient, time-saving, and labor-saving welding method.

CHUANGRONG provides high-, middle- and low-end brands of electric fusion welding machines to meet the various needs of customers.

Including RITMO and CHUANGRONG Brand.

4.Professional Solution

1) Accept customer OEM production, large quantity customization requirements.

2) Technical support:Professional engineers and senior, special engineers provide technical support:

More than 80 Technique personnel,20 Middle class engineer,8 Senior Engineers.

3)More than 100 sets injection molding machine and the largest (300,000g)domestic injection molding machine;Over 20 units of automation robot, 8 sets automation Electrofusion fittings production system.

4)Various type(Elbow,Coupler,Tee,End Cap,Saddle,Ball Valve etc) and completed specification(Ranged from 20-630 Electrofusion type)

5)Annual production capacity up to 13000 tons(More than 10 million pieces or more)

5.Technical Support

In order to better serve our customers, we have documented a wide range of Expertise in production and installation of piping systems to support large and medium-sized projects.

6.Thoughtful Service

CHUANGRONG, as China’s “GF”, we fully understand the needs of customers and provide customers with the most cost-effective solutions — one-stop product portfolio of HDPE pipe systems (HDPE pipes, fittings, welding machines and tools. Also for customers Provide high value-added services, 24 hours to answer customer questions.

Our ultimate goal is to add value to our customers through professional, efficient and cost-effective solutions.Tailored solutions for customers. Combine our Expertise in developing and producing pipelines Systems, and deep industries And market knowledge, based on long-term Experience to provide customers with cost-effective solutions.

7.Environmental

CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business activities.

HDPE is a green environmental protection material, which can be recycled without causing pollution to the environment.

We work hard to conserve natural resources and constantly strive to optimize the environmental performance of our products and how they used.

Details

Products name	Electrofusion HDPE Coupler
Sizes Available	As below specification sheet in detail
SDR	SDR11,SDR17
PN	PN16,PN10
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 12201-3:2011,EN 1555-3:2010
Colors Available	Black color , blue color, Orange or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification

20191117155608_32337
20191117155926_61103

Specifications φD	L mm	A mm	Φd mm
20	85	40	4.7
25	90	43	4.7
32	90	44	4.7
40	95	45	4.7
50	105	50	4.7
63	110	50	4.7
75	135	65	4.7
90	130	63	4.7
110	150	70	4.7
125	165	80	4.7
140	170	80	4.7
160	180	85	4.7
180	210	100	4.7
200	205	100	4.7
225	220	105	4.7
250	215	105	4.7
315	225	110	4.7
355	265	130	4.7
400	310	1150	4.7
500	370	180	4.7
560	380	185	4.7
630	430	215	4.7

Applications

1.Municipal water supply, gas supply and agriculture etc.2.Commercial & Residential water supply3.Industrial liquids transportation4.Sewage treatment5. Food and chemical industry7. Replacement of cement pipes and steel pipes8. Argillaceous silt, mud transportation9. Garden green pipe networks

20191128182602_96483

Workshop

20191128182704_59704

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

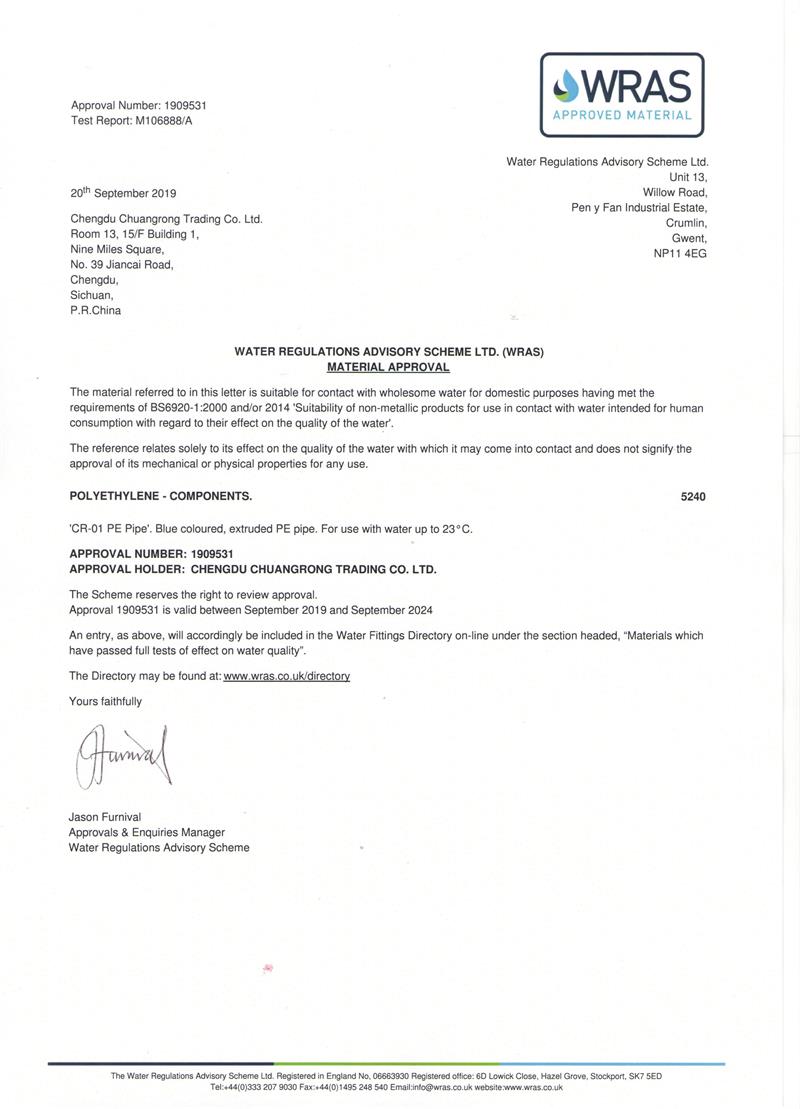

WRAS-PIPE2

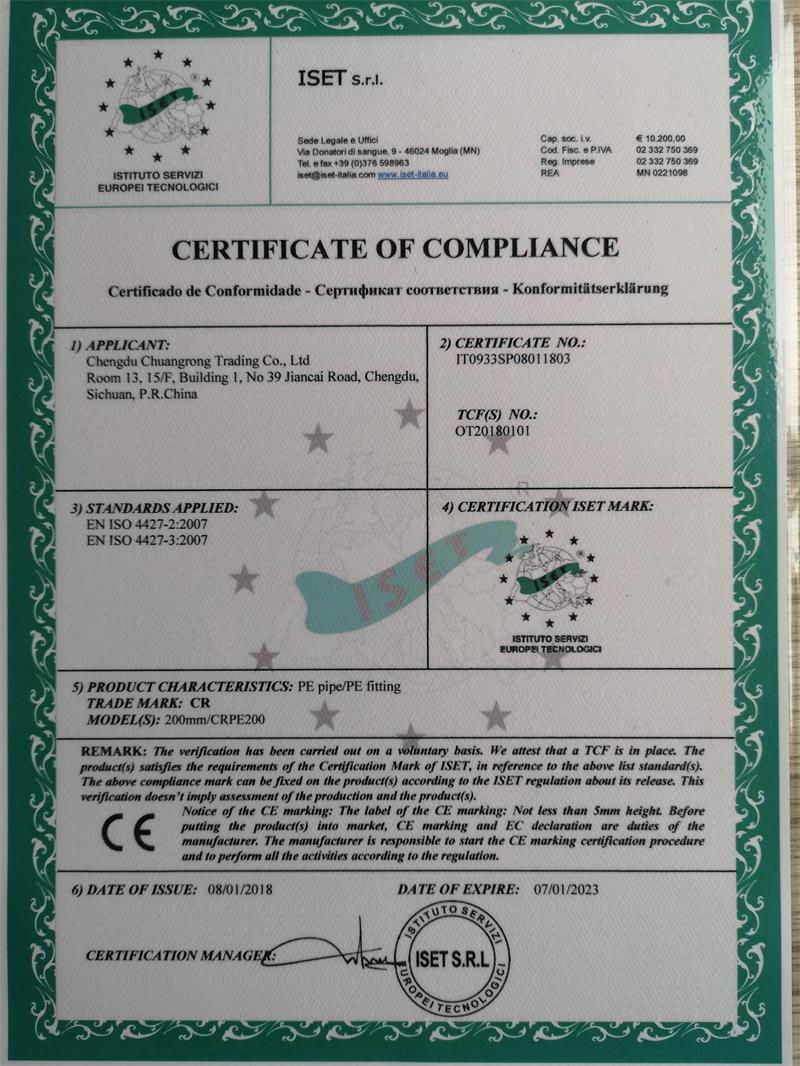

ISO44271
