OEM/ODM Factory Good Quality HDPE Fitting PP Compression Fittings Female Threaded Tee

Short Description:

1. Name: PP Coupling

2. Size: Dn20-dn110mm

3. Working Pressure : PN10 or PN16

4. Reference Standards:  UNI9561-2006, DIN8076-2007, ISO14236-2000, AS/NZS4129-2008


Product Detail

Product Tags

Our goal is usually to deliver high quality items at aggressive price ranges, and top-notch service to shoppers around the entire world. We’re ISO9001, CE, and GS certified and strictly adhere to their high quality specifications for OEM/ODM Factory Good Quality HDPE Fitting PP Compression Fittings Female Threaded Tee, We are searching ahead to cooperating with all buyers from at your home and overseas. Moreover, customer satisfaction is our everlasting pursuit.
Our goal is usually to deliver high quality items at aggressive price ranges, and top-notch service to shoppers around the entire world. We’re ISO9001, CE, and GS certified and strictly adhere to their high quality specifications for China Female Threaded Tee and Factory Supply, Our tenet is “integrity first, quality best”. We’ve got confidence in providing you with excellent service and ideal products. We sincerely hope we can establish win-win business cooperation with you in the future!

Basic Information

Material: PP Technics: Injection Molding
Connection: Mechanical Way Shape: Equal
Head Code: Round Application: Water Supply,irrigation

P CouplingOperating temperature
The maximum operating temperature is the temperature at which the polyethylene pipe is used. Refer to the country/region regulations. Accessories can withstand temperatures below 0 °C. The table below shows the maximum working pressure and temperature changes during continuous operation.



Operating T[℃] 20℃ 25℃ 30℃ 35℃ 40℃ 45℃
PFA[bar] 16 14.9 13.9 12.8 11.8 10.8
PFA[bar] 10 9.3 8.7 8 7.4 6.7

Product Description

Polypropylene Compression Coupling Fitting In Pipe For Water

Compression fittings line has been designed for the conveyance of fluids at high pressures for water conveyance for potable water distribution and applications in the thermo-hydraulic sector.This product line is designed in accordance with the most severeinternational standards in terms of mechanical properties and alimentary compatibilities.

The compression fittings allows the maximum working pressure of 16 bar at the temperature of 20

H36f4fe99c5774714aecdf28ab4d047acO_副本

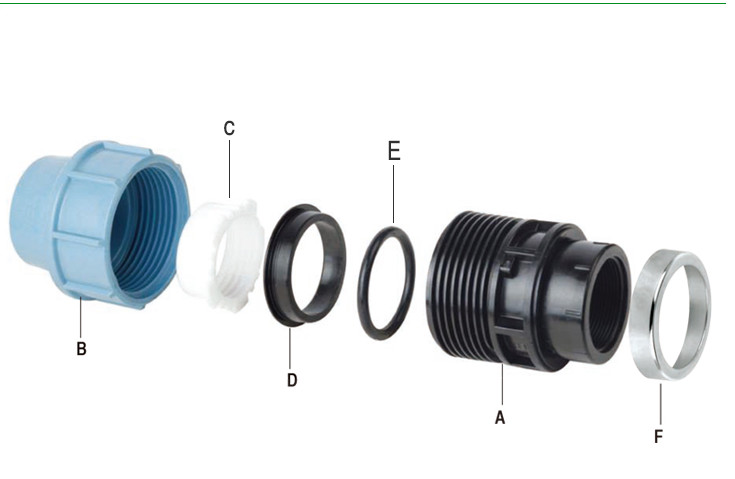

Part Material
Body(A) Heterophasic block polypropylene co-polymer(PP-B) ofexceptional mechanical properties even at high temperature.
Blocking bush(D) Polypropylene
Nut(B) Polypropylene with dye master of high stability

to UV rays andsolidity to heat( S grade according to standard DIN54004)

Clinching ring(C) Polyacetal resin(POM)with high mechanical resistanceAnd hardness
O Ring gasket(E) Special  elastomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4”

D

DN

PN

CTN

20

15

16

168

25

20

16

100

32

25

16

68

40

32

16

30

50

40

16

22

63

50

16

11

75

65

10

8

90

80

10

6

110

100

10

6

Assembly Instruction

20191023023523_60402
