Ordinary Discount China Electrofusion Fittings for HDPE Pipe

Short Description:

1. Name:  EF Reducer

2. Size: dn25-630mm

3.  PE100 SDR11 Water PN16 or Gas 10 Bar

4.  ISO 4427 , ISO4437/ EN12201, EN1555


Product Detail

Product Tags

The customer satisfaction is our primary target. We uphold a consistent level of professionalism, quality, credibility and service for Ordinary Discount China Electrofusion Fittings for HDPE Pipe, We value your inquiry, For additional specifics, make sure you make contact with us, we will reply you ASAP!
The customer satisfaction is our primary target. We uphold a consistent level of professionalism, quality, credibility and service for China Electrofusion Fittings, Hdpe Electrofusion Fittings, We always insist on the principle of “Quality and service are the life of the product”. Till now, our products have been exported to more than 20 countries under our strict quality control and high level service.

Detail Information
Product Name: PN16 SDR11 PE100 Electrofusion HDPE Fittings Reducer For Water Supply Application: Gas,Water,Oil Etc
Standard: EN 12201-3:2011,EN 1555-3:2010 Material: PE100 Virgin Raw Material
Specification: 25*20mm~400*315mm PE100 PN16 SDR11 Port: China Main Port
Product Description

PN16 SDR11 PE100 Electrofusion HDPE Fittings Reducer for Water supply

Production Description of Electrofusion HDPE Reducer

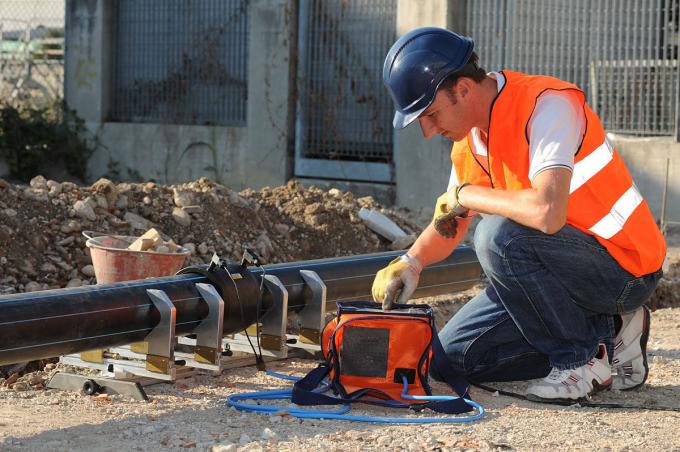

-Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Adavantages of CHUANGRONG Electrofusion HDPE Fittings

1.Cost-effective

Highest cost performance

Compared with traditional steel pipes, it is light and easy for workers to install and repair

Low installation and maintenance costs

Easy loading and transportation

Suitable for non-excavation

2.Sustainability

CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business activities.

HDPE is a green environmental protection material, which can be recycled without causing pollution to the environment.

We work hard to conserve natural resources and constantly strive to optimize the environmental performance of our products and how they used.

3.Professional Solution

1) Accept customer OEM production, large quantity customization requirements.

2) Technical support:Professional engineers and senior, special engineers provide technical support:More than 80 Technique personnel,20 Middle class engineer,8 Senior Engineers.

3)More than 100 sets injection molding machine and the largest (300,000g)domestic injection molding machine; Over 20 units of automation robot, 8 sets automation Electrofusion fittings production system.

4)Various type(Elbow,Coupler,Tee,End Cap,Saddle,Ball Valve etc) and completed specification(Ranged from 20-630 Electrofusion type)

5)Annual production capacity up to 13000 tons(More than 10 million pieces or more)

4.Technical Support

The key factors of product quality are technical support and material selection

Installed successfully. Our strong and efficient teamwork provides customers with the best solution in a timely manner:

The sales team understands and understands the customer’s use and proposes suitable HDPE pipeline solutions and products. The production department coordinates the production plan to ensure the fastest delivery time. Engineers and technicians solve and provide technical product performance and technical support.

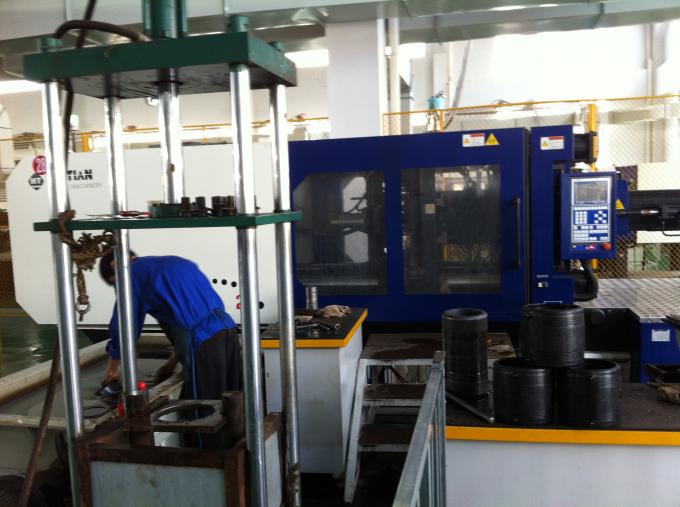

Production workshop & Equippments

Own over 100 sets of injection molding machine;

The largest(300,000g) domestic injection molding machine;

Over 20 units hautomation robot;

8 sets automation Electrofusion HDPE fittings production system.

Annual capacity of over 13000 tons which gives customers huge inventory support.

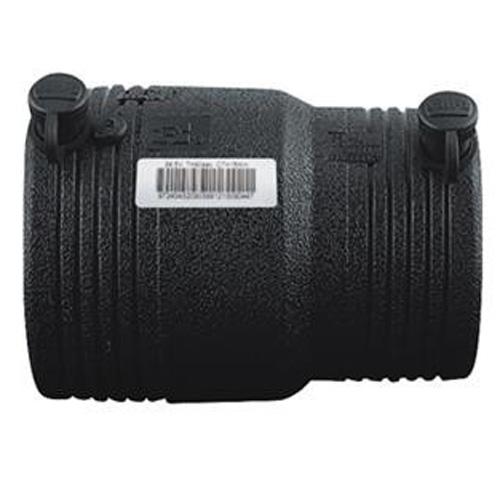

Black PN16 SDR11 PE100 HDPE Electrofusion Reducer For Sewage Treatment

Black PN16 SDR11 PE100 HDPE Electrofusion Reducer For Sewage TreatmentBlack PN16 SDR11 PE100 HDPE Electrofusion Reducer For Sewage Treatment

P2:4.7 Pin(4.0 welded bySwitched adaptor) P3:Printed Parameters P4:Embedded copper wire

1)Fusion Pin of Electrofusion HDPE fittings

4.7mm Pin of Electrofusion HDPE fittings produced.

Besides switched adaptors for 4.0 Pin supplied to suit claw of 4.0 electrofusion machine.

2)Moulded-in welding parameters

Welding parameters as per EN1555 is printed on the fittings, Such as Products’ name,OD(mm),PE100, PN16 SDR11.

Bar code is also attached on the electrofusion fittings for scanning.

3)Element&Stops

To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body. All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can be removed for use in,for example,repair situations.

4)High quality copper wire embed in the HDPE fittings which haveGood thermal conductivity.

Details of Electrofusion HDPE Reducer

Products name Electrofusion HDPE Reducer
Sizes Available As below specification sheet in detail
SDR SDR11,SDR17
PN PN16,PN10
Material Brand SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard EN 12201-3:2011,EN 1555-3:2010
Colors Available Black color , blue color, Orange or as request.
Packing Method Normal export packing. by carton
Production Lead Time Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate ISO, CE,BV,Factory Test Report
Supply Ability 100000 Ton/Year
Payment Method T/T, L/C at sight
Trading Method EXW, FOB, CFR, CIF,DDU

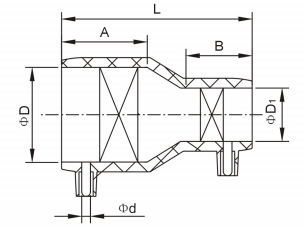

Specification of Electrofusion HDPE Reducer

Black PN16 SDR11 PE100 HDPE Electrofusion Reducer For Sewage Treatment Black PN16 SDR11 PE100 HDPE Electrofusion Reducer For Sewage Treatment

specifications

φD×φD1

L

mm

A

mm

B

mm

φd

mm

25×20 95 45 35 4.7
32×20 95 45 45 4.7
32×25 95 40 45 4.7
40×25 100 50 40 4.7
40×32 100 50 40 4.7
50×25 110 55 40 4.7
50×32 110 55 40 4.7
50×40 110 50 50 4.7
63×25 115 60 40 4.7
63×32 120 60 40 4.7
63×40 120 55 40 4.7
63×50 120 55 50 4.7
75×50 120 65 50 4.7
75×63 130 65 50 4.7
90×50 140 65 55 4.7
90×63 140 65 55 4.7
90×75 145 65 60 4.7
110×63 160 75 55 4.7
110×75 155 75 60 4.7
110×90 155 75 65 4.7
125×63 160 80 60 4.7
125×90 160 80 70 4.7
125×110 165 85 69 4.7
160×90 195 94 74 4.7
160×110 195 95 75 4.7
160×125 195 95 75 4.7
200×110 210 95 80 4.7
200×160 210 95 85 4.7
250×110 230 100 80 4.7
250×160 230 110 90 4.7
250×200 230 110 100 4.7
315×200 240 100 100 4.7
315×250 240 100 100 4.7
400×250 260 110 105 4.7
400×315 260 110 105 4.7

Applications of Electrofusion HDPE Fittings

1.Municipal water supply, gas supply and agriculture etc.2.Commercial & Residential water supply3.Industrial liquids transportation4.Sewage treatment5. Food and chemical industry7. Replacement of cement pipes and steel pipes8. Argillaceous silt, mud transportation9. Garden green pipe networks

Black PN16 SDR11 PE100 HDPE Electrofusion Reducer For Sewage Treatment

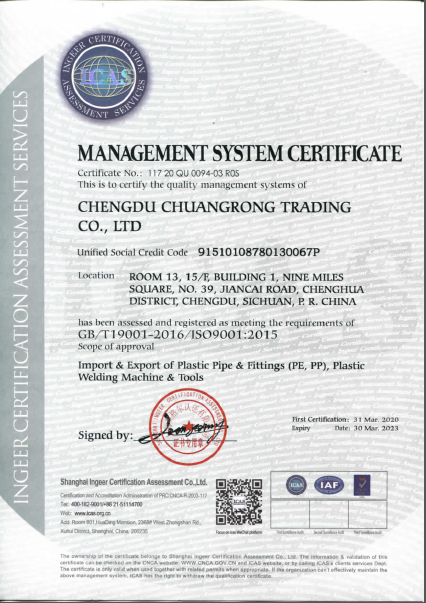

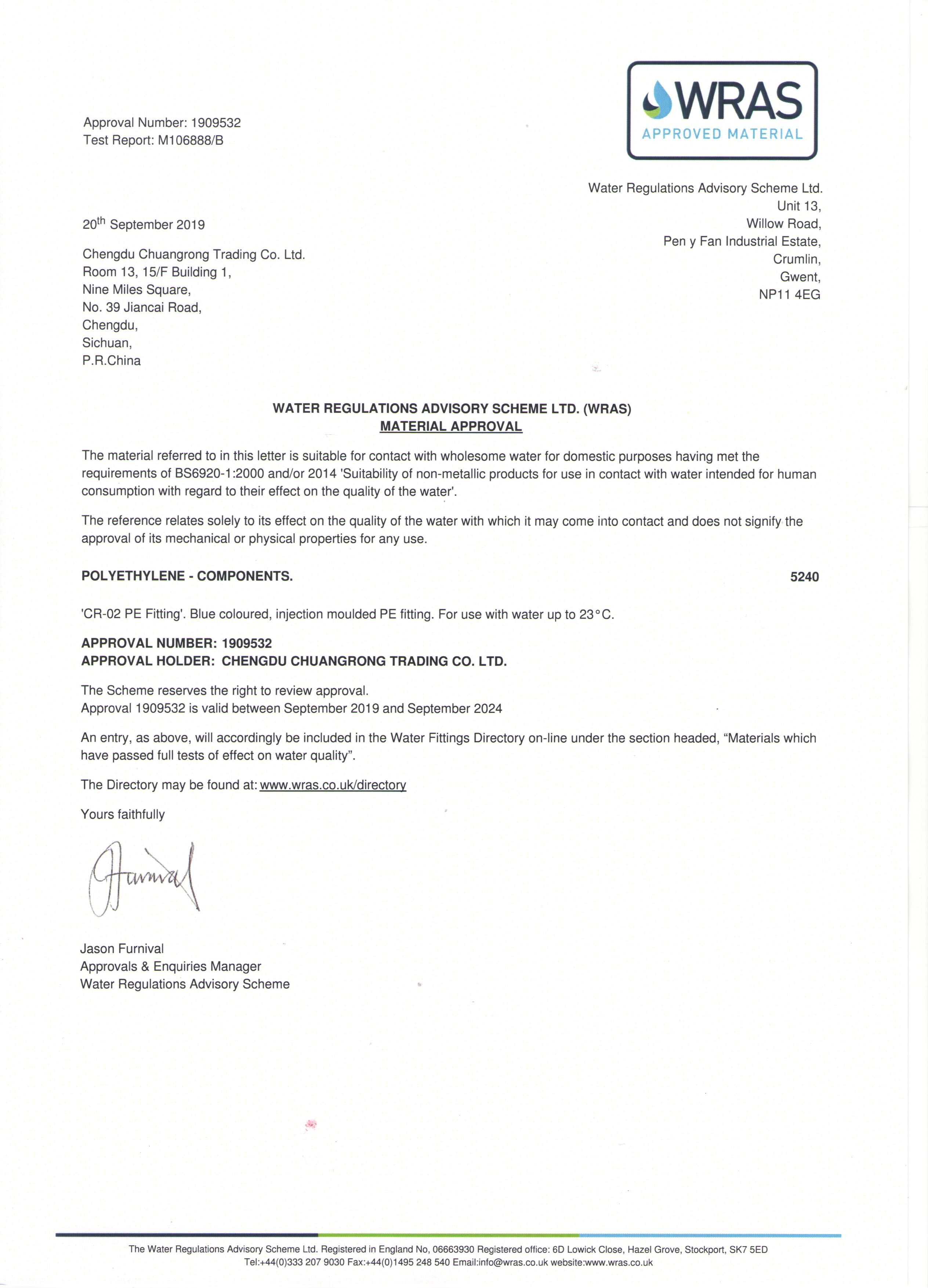

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
