PE100 Large Size Machined Eccentric Reducer Butt Welding HDPE Pipe Fittings

Short Description:

1. Name: HDPE Customized Machined Eccentric Reducer

2. Size: 110-1200mm

3. Pressure: SDR26, SDR17, SDR13.6 SDR11, SDR9, SDR7.4

4. Standard: ASTM, ISO 4427, EN12201, EN1555

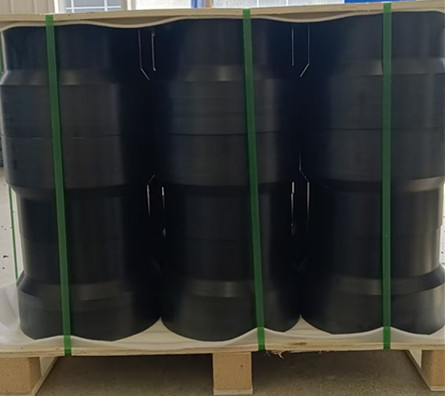

5. Packing: Cartons or bags.

6. Delivery: 3-7 days depending on the total quantity.

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send email to us Send email

Product Detail

Specification&Procession

Application&Certifications

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

Large size High pressure High Density Polyethylene (HDPE) fittings are made from the thick-walled pipe blanks and bars. The maximum outer diameter of the thick-walled hollow bar is up to 2500mm. Thick-walled pipe blanks and bars can make for various pipe fittings , which are difficult to process by injection molding, so as to solve many problems encountered in the design, construction and installation of PE pipes.

It can be produced and processed according to ASTM, ISO 4427, EN12201, EN1555 and other standards, concentric reducer, eccentric reducer, tee, mud tee, pipe cap flange and other customized pipe fittings, etc., can be customized according to drawings. Range: 110-2500mm, pressure sdr17-sdr6, the pipe fittings produced by our company have been widely used in the field of water supply, nuclear power plant, oiling$ gas, district heating minning, water treatment and sea desalination projects etc.

PE100 Large Size Machined Eccentric Reducer

Type	Specification	Diameter(mm)	Pressure
Large Size High Pressure Machined fittings	Sweep Bend	90-400mm(3D radius) 400-1800mm(2radius)	PN6-PN25
	Equal Tee	90-2500mm	PN6-PN25
	Reducing Tee	90-2500mm	PN6-PN25
	Y Lateral/ Junction/WYE45˚ or 60˚ Tee	90-2500mm	PN6-PN25
	Invert Tee/ Scour Tee	90-2500mm	PN6-PN25
	Cross	90-2500mm	PN6-PN25
	Flange Adaptor(Stub end/Full Face/IPS/DIPS MJ Adaptor	90-2500mm	PN6-PN25
	Concentric Reducer	90-2500mm	PN6-PN25
	Eccentric Reducer	90-2500mm	PN6-PN25
	End cap	90-2500mm	PN6-PN25
	Large Size Electrofusion Coupler	63-1800mm	PN6-PN25
	Large Size Electrofusion Saddle	Branch up to 1200mm	PN6-PN25

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com

Product Description

CHUANGRONG is the Supplier and Solution of HDPE fittings, pipes and welding machine since 2005.

• With around 20 years' experience in this industry, with innovation and strong team in R&D, aims to provide a full solution for the HDPE pipe system.

• We are a fully-fledged ISO certified company. These years, we made great effort in large PE fittings( up to 2500mm) and fusion machine developments( up to 2500mm).

• Besides as one-stop solution and supplier, we have our own construction team, with rich experience in gas, water, piping installation and pipe relining project, we can offer suggestions in how to get the most economic joint solution.

Product are with by Australian Standard mark,Water mark certificate, BV France, WRAS Certificate from UK, CE Certificate.

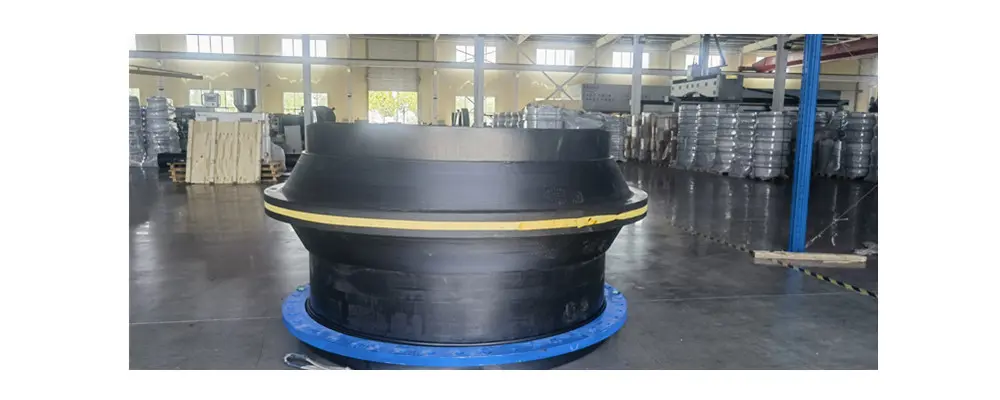

Now CHUANGRONG has completed our large size HDPE Eccentric reducers up to 1600mm and 63" .

If you have any questions, you can feel free to contact us in anytime .

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: Large Size High Pressure Butt Fusion Multi 11°-90° Angle Sweep Seamless Bend/ Elbow HDPE Machined Fittings

Next: PE100 PN16 PN10 11.25/22.5 /30 Degree Butt Fusion Fabricated Elbow/Bend HDPE Fittings

d1	d2	L	L1	L2
mm	mm	mm	mm	mm
SDR 7.4/SDR9/SDR11/SDR13.6/SDR17/SDR21/SDR26
63	32~50	140	60	50
75	40~63	140	60	50
90	50~75	160	80	50
110	63~90	180	80	70
125	63~110	180	80	70
140	63~125	180	80	70
160	63~140	190	80	80
180	90~160	200	90	80
200	90~180	210	100	80
225	90~200	220	100	90
250	90~225	220	100	90
280	110~250	230	110	90
315	110~280	230	110	90
355	110~315	240	110	100
400	110~355	240	110	100
450	160~400	250	120	100
500	160~450	260	120	110
560	160~500	260	120	110
630	160~560	260	120	110
710	200~630	300	140	120
800	250~710	300	140	120
900	315-800	290	140	120
1000	400-900	300	140	130
1200	450-1000	310	150	130

We can supply ISO9001-2015,WRAS, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
