PN16 SDR11 PE100 HDPE Electrofusion Fittings , HDPE Electrofusion Coupler

Short Description:

1.  Name:  EF Coupler/Coupling

2.  Size: dn20-1200mm

3.  Pressure :PE100 SDR11 Water PN16 or Gas 10 Bar

4.  Pressure: Up to 315mm Water PN10 or 110-315mm  PN20

5. Standard :ISO4427 , EN12201/ ISO4437, EN1555

6. Delivery: 3-7 Days, Quick Deliery.

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.


Product Detail

Specification&Procession

Application&Certifications

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.



CHUANGRONG can provide high quality HDPE Electrofusion Fittings for Water,Gas and Oil  DN20-1200mm, SDR17, SDR11, SDR9  with bar code at competitive price.



PE100  Electrofusion Coupler/Coupling For Water  Gas  and Oil Supply

Fittings Type

Specification

Diameter(mm)

Pressure

HDPE Electrofusion Fittings

EF Coupler

DN20-1400mm

SDR17, SDR11 SDR9(50-400MM)

EF Reducer

DN20-1200mm

SDR17, SDR11 SDR9(50-400MM)

EF 45 deg elbow

DN50-1000mm

SDR17, SDR11 SDR9(50-400MM)

EF 90 deg elbow

DN25-1000mm

SDR17, SDR11 SDR9(50-400MM)

EF Tee

DN20-800mm

SDR17, SDR11 SDR9(50-400MM)

EF Reducing Tee

DN20-800mm

SDR17, SDR11 SDR9(50-400MM)

EF End Cap

DN50-400mm

SDR17, SDR11 SDR9(50-400MM)

EF Stub End

DN50-1000mm

SDR17, SDR11 SDR9(50-400MM)

EF Branch Saddle

DN63-1600mm

SDR17, SDR11

EF Tapping Saddle

DN63-400mm

SDR17, SDR11

EF Repair Saddle

DN90-315mm

SDR17, SDR11

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com



Product Description

DSC08841
DSC08807

HDPE Electrofusion Fittings Coupler for Water Gas and Oil supply PN16 SDR11 PE100

HDPE Electrofusion Couplers:

1. Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together.

2. Afterelectrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electricfuse.

3. HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

4. Electrofusion coupler/ coupling is the most commonly used HDPE fittings whatever for water supply, Gas or Fire fighting etc.

5. PN20&PN16&PN10 is available.



 Main reasons to Choose CHUANGRONG Electrofusion HDPE Fittings

1. CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business activities.

2. HDPE is a green environmental protection material, which can be recycled without causing pollution to the environment.

3. We work hard to conserve natural resources and constantly strive to optimize the environmental performance of our products and how they used.



Products name Electrofusion HDPE Coupler
Sizes Available As below specification sheet in detail
SDR SDR11,SDR17
PN PN16,PN10
Material Brand SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard EN 12201-3:2011,EN 1555-3:2010
Colors Available Black color , blue color, Orange or as request.
Packing Method Normal export packing. by carton
Production Lead Time Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate ISO, CE,BV,Factory Test Report
Supply Ability 100000 Ton/Year
Payment Method T/T, L/C at sight
Trading Method EXW, FOB, CFR, CIF,DDU
CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855


  • Previous:
  • Next:

  • 20191117155608_32337
    20191117155926_61103

    <

    Specifications

    φD

    L

    mm

    A

    mm

    Φd

    mm

    20

    85

    40

    4.7

    25

    90

    43

    4.7

    32

    90

    44

    4.7

    40

    95

    45

    4.7

    50

    105

    50

    4.7

    63

    110

    50

    4.7

    75

    135

    65

    4.7

    90

    130

    63

    4.7

    110

    150

    70

    4.7

    125

    165

    80

    4.7

    140

    170

    80

    4.7

    160

    180

    85

    4.7

    180

    210

    100

    4.7

    200

    205

    100

    4.7

    225

    220

    105

    4.7

    250

    215

    105

    4.7

    315

    225

    110

    4.7

    355

    265

    130

    4.7

    400

    310

    150

    4.7

    500

    370

    180

    4.7

    560

    405

    202

    4.7

    630

    425

    212

    4.7

    710

    432

    216

    4.7

    800

    462

    231

    4.7

    900

    528

    258

    4.7

    1000

    590

    289

    4.7

    1200

    595

    290

    4.7

    1.Cost-effective

    Highest cost performance, Compared with traditional steel pipes, it is light and easy for workers to install and repair, Low installation and maintenance costs, Easy loading and transportation, Suitable for non-excavation.

    2.Safety and Reliability

    Life span of at least 50 years, Completely maintenance-free, In all weather conditions, Excellent chemical resistance, Good impact and abrasion resistance.

    3. Flexiblity

    Multiple connection methods, suitable for electric melting, hot melting, socket, flange connection.

    Electrofusion is the most efficient, time-saving, and labor-saving welding method.

    CHUANGRONG provides high-, middle- and low-end brands of electric fusion welding machines to meet the various needs of customers.

    4.Professional Solution

    1) Accept customer OEM production, large quantity customization requirements.

    2) Technical support:Professional engineers and senior, special engineers provide technical support, More than 80 Technique personnel,20 Middle class engineer,8 Senior Engineers.

    3)More than 100 sets injection molding machine and the largest (300,000g)domestic injection molding machine;Over 20 units of automation robot, 8 sets automation Electrofusion fittings production system.

    4)Various type(Elbow,Coupler,Tee,End Cap,Saddle,Ball Valve etc) and completed specification(Ranged from 20-1200 Electrofusion type).

    5)Annual production capacity up to 13000 tons(More than 10 million pieces or more).

    5.Technical Support

    In order to better serve our customers, we have documented a wide range of Expertise in production and installation of piping systems to support large and medium-sized projects.

    6.Thoughtful Service

    1)CHUANGRONG, as China’s “GF”, we fully understand the needs of customers and provide customers with the most cost-effective solutions — one-stop product portfolio of HDPE pipe systems (HDPE pipes, fittings, welding machines and tools. Also for customers provide high value-added services, 24 hours to answer customer questions.

    2) Our ultimate goal is to add value to our customers through professional, efficient and cost-effective solutions.Tailored solutions for customers. Combine our expertise in developing and producing pipelines Systems, and deep industries and market knowledge, based on long-term Experience to provide customers with cost-effective solutions.

    7.Environmental

    1)CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business activities.

    2)HDPE is a green environmental protection material, which can be recycled without causing pollution to the environment.

    3) We work hard to conserve natural resources and constantly strive to optimize the environmental performance of our products and how they used.

    1.Municipal water supply, gas supply and agriculture etc.

    2.Commercial & Residential water supply

    3.Industrial liquids transportation.

    4.Sewage treatment.

    5. Food and chemical industry.

    6. Replacement of cement pipes and steel pipes

    7. Argillaceous silt, mud transportation.

    8.. Garden green pipe networks

    DSC09001
    20191128182602_96483

    CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

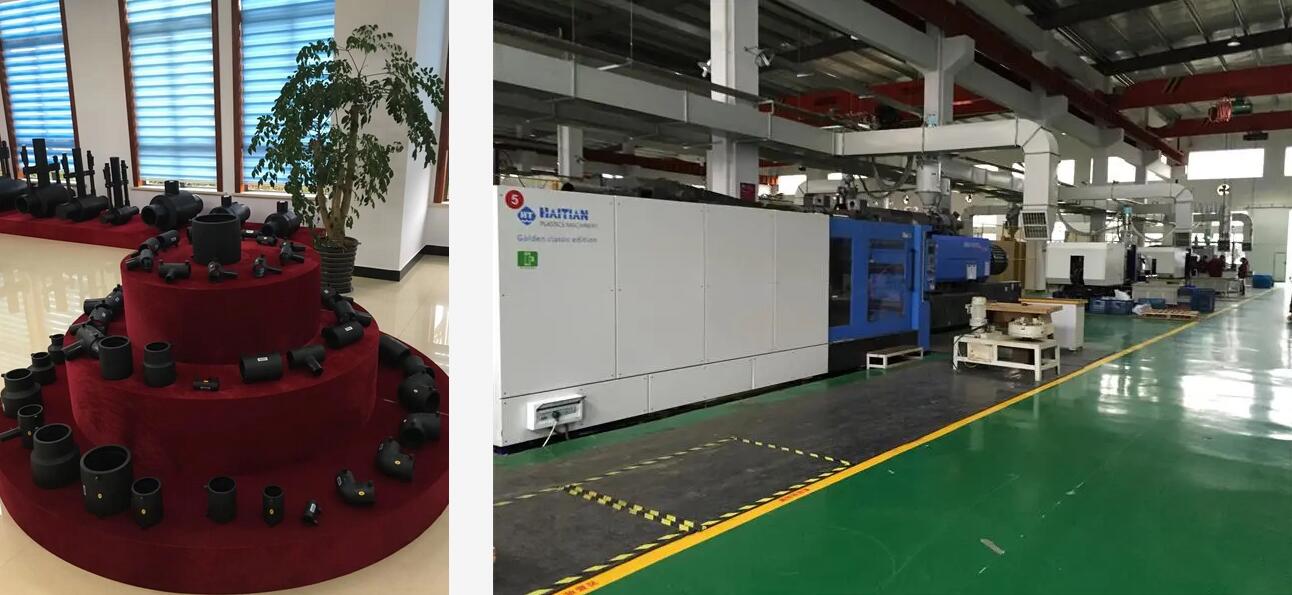

    workshop

    We can supply ISO9001-2015, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

    WRAS-PIPE2
    Gas and Oil certifiacate_00(1)
