PP Coated-Steel Backing Ring for HDPE Flange Adaptor /Stub End

Short Description:

1. Name: PP Coated-Steel Backing Ring

2. Size : 50-630mm, 11/2-24″

3. Standard: GB/9119-2010; ISO 7005-1:1992; DIN 2501; DIN 2576, ASME B16.5 Class150

4. Packing: Woodencase, cartons or bags.

5. Delivery: 3-7 Days, Quick Deliery.

6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send email to us Send email

Product Detail

Specification&Procession

Application&Certifications

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

CHUANGRONG can provide high quality HDPE Electrofusion Fittings for Water,Gas and Oil DN20-1200mm, SDR17, SDR11, SDR9 with bar code at competitive price.

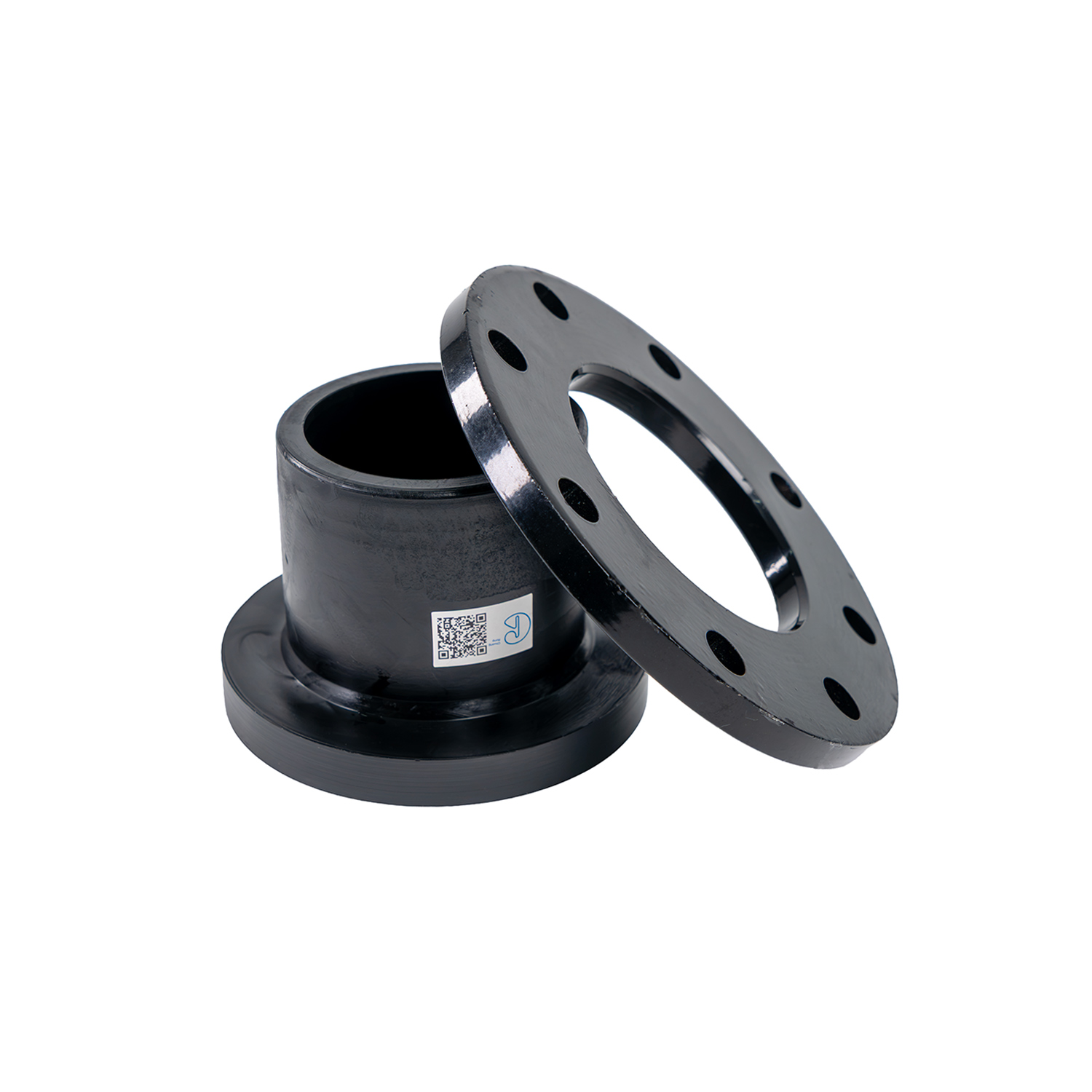

PP Coated-Steel Backing Ring for HDPE Flange Adaptor /Stub End

Type	Specification	Diameter(mm)	Pressure
Transition Fittings	PE to Male&Female Brass(Chrome Coated )	DN20-110mm	PN16
	PE to Steel Transition Threaded	DN20x1/2 -DN110X4	PN16
	PE to Steel Transition Pipe	DN20-400mm	PN16
	PE to Steel Transition Elbow	DN25-63mm	PN16

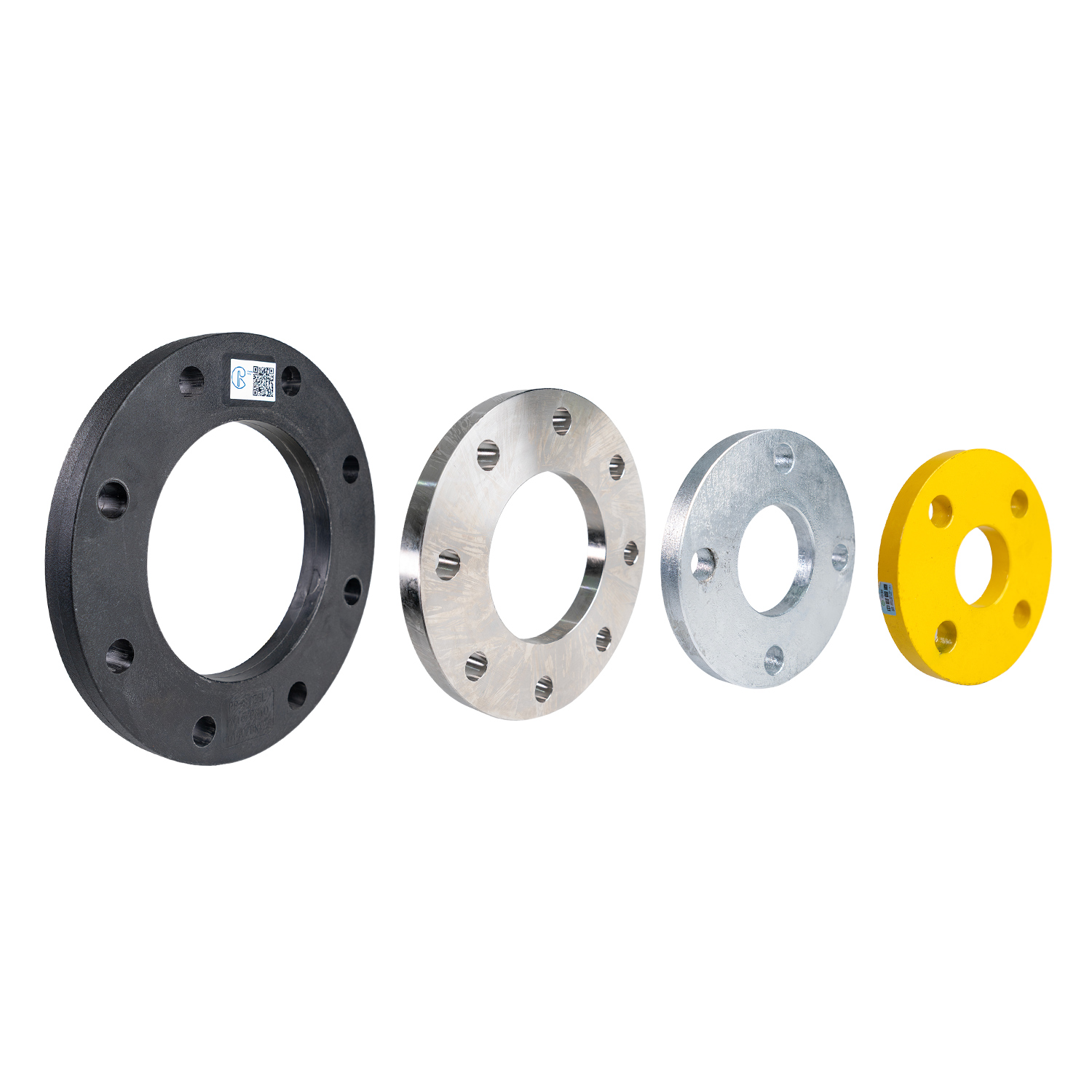

	Stainless Flange(Backing Ring)	DN20-1200mm	PN10 PN16
	Galvanized Flange(Backing Ring)	DN20-1200mm	PN10 PN16
	Spray Coated Flange(Backing Ring)	DN20-1200mm	PN10 PN16
	PP Coated- Steel Flange (Backing Ring)		PN10 PN16

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com

Product Description

PP/Steel Flange Backing Rings are designed to provide a low cost, chemically-resistant alternative to traditional galvanized and other type coated steel backing rings.

The steel core provides strength and rigidity while the PP with fiber reinforced material over-molding allows for good chemical resistance.

PP/Steel flange backing rings provide a complete and cost-effective solution for superior protection against highly corrosive applications.

CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: AS2129/AS4087 PN16 or PN10 Stainless Steel Backing Ring for HDPE Flange Adaptor

Next: PE to Steel Straight Transition Pipe Fitings for Water or Gas SDR11 PN16 HDPE Pipe Fittings

STANDARD: GB/9119-2010; ISO 7005-1:1992; DIN 2501; DIN 2576

DN	PEdn	D	K	B	n	d	h	PN
40	50	150	110	62	4	18	18	PN16
50	63	165	125	78	4	18	18	PN16
65	75	185	145	92	4	18	18	PN16
80	90	200	160	108	8	18	20	PN16
100	110	220	180	128	8	18	20	PN16
150	160	285	240	178	8	22	22	PN16
200	200	340	295	235	12	22	24	PN16
250	250	405	355	288	12	26	30	PN16
350	355	520	470	376	16	26	30	PN16
400	400	580	525	430	16	30	32	PN16
600	630	840	770	645	20	35	50	PN16

STANDARD: ASME B16.5 Class150

SIZE	DN	dn	K	n	D	B	d	h
1/2″	15	20	60	4	98	32	16	14
3/4″	20	25	70	4	108	37	16	14
1″	25	32	79	4	120	44	16	14
11/4″	32	40	89	4	140	52	16	16
11/2″	40	50	98	4	150	63	16	16
2″	50	63	121	4	165	78	20	20
21/2″	65	75	140	4	185	92	20	20
3″	80	90	152	4	200	108	20	22
4″	100	110	191	8	230	128	20	22
[4"]	100	125B	191	8	230	140	20	22
5″	125	125	216	8	260	140	23	24
[5"]	125	140	216	8	260	158	23	24
6″	150	160	241	8	286	178	23	26
[6"]	150	180	241	8	286	195	23	26
8″	200	200	298	8	345	235	23	28
[8"]	200	225	298	8	345	240	23	28
10″	250	250	362	12	410	288	26	30
[ 10"]	250	280	362	12	410	294	26	30
12″	300	315	432	12	485	345	26	35
14″	350	355	476	12	535	376	30	40
16″	400	400	540	16	600	430	30	40
18″	450	450	578	16	640	470	32	45
20″	500	500	635	20	700	533	32	45
22″	550	560	692	20	760	590	35	50
24″	600	630	749	20	820	645	35	50

CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555, DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.
