Reasonable price for China HDPE Polyethylene Pipe Fusion Machines for Plastic Welding

Short Description:

1.  Self -aligning haydraulic butt fusion machine

2. Suitable fore welding hdpe pipe for water, gas  and other fluids

3.  Basic 400(250-400)

4. Basic 500(280-500), Basic630(355-630)


Product Detail

Product Tags

We often stick to the basic principle “Quality 1st, Prestige Supreme”. We are fully committed to giving our shoppers with competitively priced excellent products and solutions, prompt delivery and skilled provider for Reasonable price for China HDPE Polyethylene Pipe Fusion Machines for Plastic Welding, Our company insists on innovation to promote the sustainable development of enterprise, and make us become the domestic high-quality suppliers.
We often stick to the basic principle “Quality 1st, Prestige Supreme”. We are fully committed to giving our shoppers with competitively priced excellent products and solutions, prompt delivery and skilled provider for China Welding Machinery, Welding Machine, Many years of work experience, we’ve got realized the importance of providing good quality products and solutions and the best before-sales and after-sales services. Most problems between suppliers and clients are due to poor communication. Culturally, suppliers can be reluctant to question things they do not understand. We break down all those barriers to ensure you get what you want to the level you expect, when you want it. faster delivery time and the product you want is our Criterion .

Detail Information

After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Online Support, Video Technical Support Warranty: One Year
Working Range: 160-355/250-400/280-500mm/400-630 Pressure: 6MP
Hydraulic: 46# Power: 3.55KW,4.95kw,8.85kw

Product Description

1. The hydraulic system is made of imported control valve and seals. The oil seals are well controlled and have a long life.
2. The heating plate is made of imported DuPont Teflon coating and coated by the standard coating process of professional paint factory. The effect is good and the service life is long.
3. Temperature sensing system, accurate temperature control and long service life.
4. The milling cutter has a safety micro switch to prevent accidents.
5. Single clamp, accurate processing size, can effectively reduce the time of pipeline routing and improve work efficiency.

Standard composition:1.Machine body2.Milling cutter3.Heating plate4.Hydraulic control unit5.Support6.Multilayer stacking clamp

Technical data



TYPE



400

500

630

Materials

PE, PP, PVDF

Max. range of diameter

400 mm

500 mm

630 mm

Environment Temperature

-10~45℃

Power Supply

380V50Hz

Max. Temp. of Heating Plate

270℃

Difference in surface temperature of heating plate

<±7°

Total power

7kW

8.4kW

12.2kW

Heating Plate

4kW

5.4kW

9.2kW

Planing tool Motor

1.5kW

Hydraulic Unit Motor

1.5kW

Dielectric resistance

>1MΩ

Total section of cylinders

22.36cm²

24.72cm²

23.06cm²

Volume of oil box/Hydraulic oil

4/N46

Net weight,kg

280

435

566

Gross weight,kg

410

583

752

Dimension,M³

1.87

2.7

4.12

OPERATING INSTRUCTIONS

Application

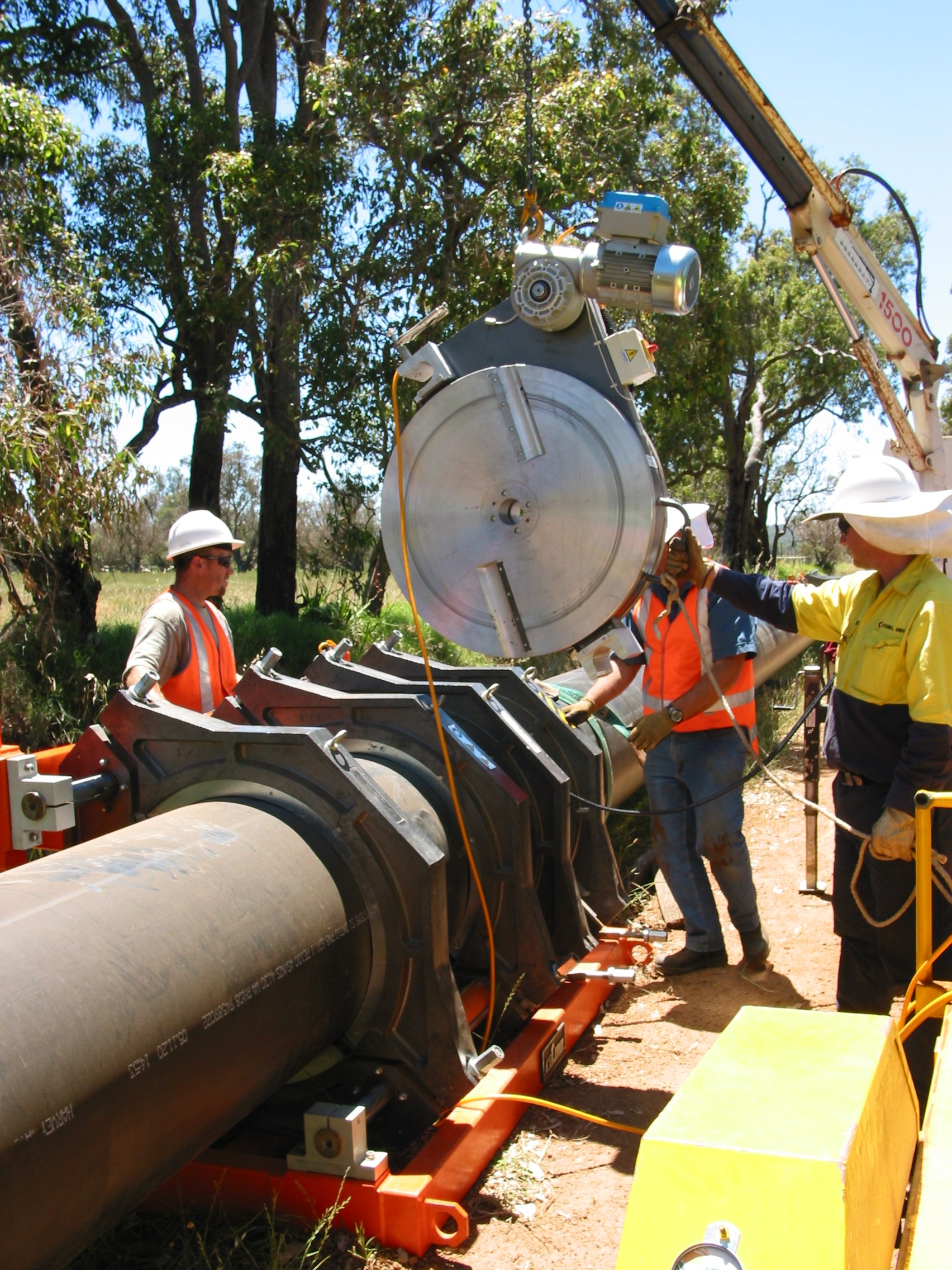

The machine is an on-site welding machine equipped with a heating element for butt-welding of pipes and/or fittings made of Polyethylene (PE), Polypropylene (PP) and other thermoplastic materials intended for carrying combustible gas, water and other fluids under pressure.

1232540980775997441We often stick to the basic principle “Quality 1st, Prestige Supreme”. We are fully committed to giving our shoppers with competitively priced excellent products and solutions, prompt delivery and skilled provider for Reasonable price for China HDPE Polyethylene Pipe Fusion Machines for Plastic Welding, Our company insists on innovation to promote the sustainable development of enterprise, and make us become the domestic high-quality suppliers.
Reasonable price for China Welding Machinery, Welding Machine, Many years of work experience, we’ve got realized the importance of providing good quality products and solutions and the best before-sales and after-sales services. Most problems between suppliers and clients are due to poor communication. Culturally, suppliers can be reluctant to question things they do not understand. We break down all those barriers to ensure you get what you want to the level you expect, when you want it. faster delivery time and the product you want is our Criterion .
