Super Lowest Price China-Manufacturer Molded HDPE Pipe Fittings Spigot/Electrofusion/Socket Fusion PE Pipe Fitting

Short Description:

1. Name: EF Equal Tee

2. Size : dn20-630mm

3. PE100 SDR11 Water PN16 or Gas 10 Bar

4. ISO4427, EN12201 / ISO4437 EN1555

Send email to us Send email

Product Detail

Product Tags

owing to good service, a variety of high quality products, competitive prices and efficient delivery, we enjoy a good reputation among our customers. We are an energetic company with wide market for Super Lowest Price China-Manufacturer Molded HDPE Pipe Fittings Spigot/Electrofusion/Socket Fusion PE Pipe Fitting, We are going to continually strive to increase our company and supply the ideal quality products with aggressive price ranges. Any inquiry or comment is hugely appreciated. Remember to get hold of us freely.
owing to good service, a variety of high quality products, competitive prices and efficient delivery, we enjoy a good reputation among our customers. We are an energetic company with wide market for China PVC Valve, PVC Fitting, The company has numbers of foreign trade platforms, which are Alibaba,Globalsources,Global Market,Made-in-china. “XinGuangYang” HID brand products and solutions sell very well in Europe, America, Middle East and other regions more than 30 countries.

Detail Information

Product Name:	110mm PN16 SDR11 PE100 Electrofusion HDPE Fittings Equal Tee For Water Supply	Standard:	EN 12201-3:2011,EN 1555-3:2010
Application:	Gas,Water,Oil Etc	Specification:	20mm~400*mm PE100 PN16 SDR11
Port:	China Main Port	Material:	PE100 Virgin Raw Material

Product Description

PN16 SDR11 PE100 Electrofusion HDPE Fittings Equal Tee for Water supply

Production Description of Electrofusion HDPE Equal Tee

-Electrofusion HDPE fittings arewelded by electrofusion machine to connect HDPE pipes together:

After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Products name	Electrofusion HDPE Equal Tee
Sizes Available	As below specification sheet in detail
SDR	SDR11,SDR17
PN	PN16,PN10
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 12201-3:2011,EN 1555-3:2010
Colors Available	Black color , blue color, Orange or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity.Normally about 2~3 weeks for 20′ GP, 3~4 Weeks for a 40′GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification

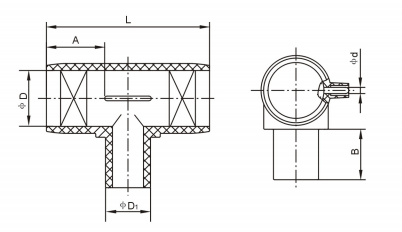

20191118141819_86189

specifications φD×D1×φD	L mm	A mm	B mm	Φd mm
20×20×20	100	40	50	4.7
25×25×25	105	45	50	4.7
32×32×32	120	45	55	4.7
40×40×40	125	45	60	4.7
50×50×50	145	55	55	4.7
63×63×63	165	55	60	4.7
75×75×75	195	70	70	4.7
90×90×90	210	65	775	4.7
110×110×110	240	75	80	4.7
125×125×125	255	80	85	4.7
160×160×160	310	90	95	4.7
180×180×180	340	100	95	4.7
200×200×200	360	100	105	4.7
250×250×250	410	100	115	4.7
315×315×315	520	125	115	4.7
400×400×400	600	125	115	4.7

Applications

1.Municipal water supply, gas supply and agriculture etc.2.Commercial & Residential water supply3.Industrial liquids transportation4.Sewage treatment5. Food and chemical industry7. Replacement of cement pipes and steel pipes8. Argillaceous silt, mud transportation9. Garden green pipe networks

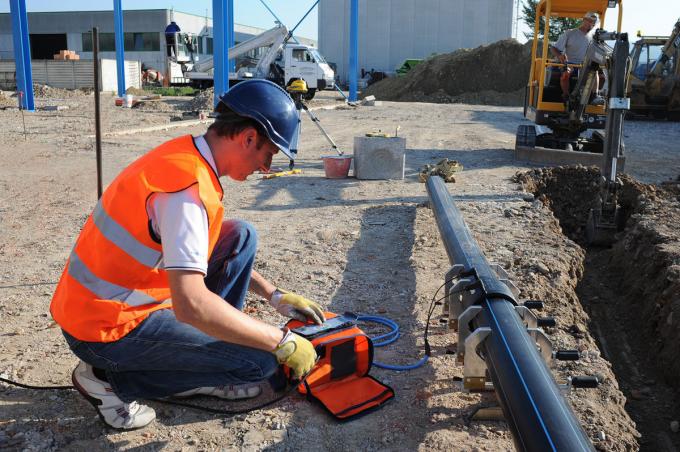

20191128170625_40914

Factory Test report

est item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the
same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standards.

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
